Castle Creations

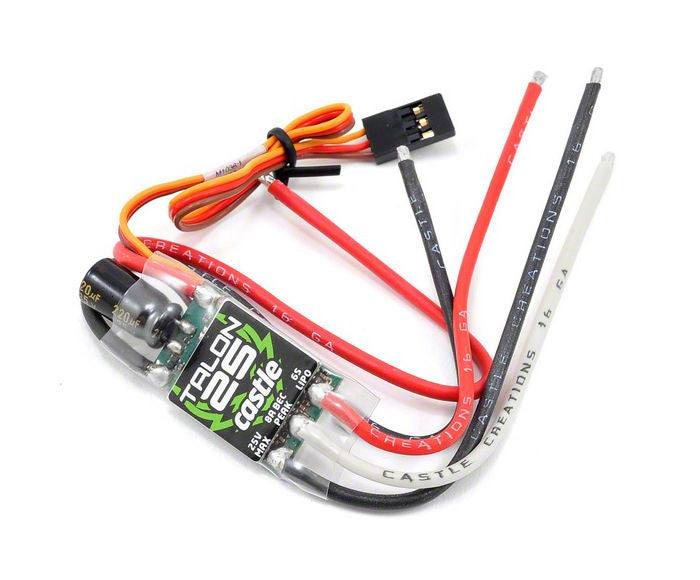

Castle Creations Talon 25 Amp ESC 6S / 25V with 8 Amp BEC 010-0128-00

Out of stock
SKU: CSE010-0128-00
$49.95

Product details

  • Vendor Castle Creations
  • SKU CSE010-0128-00
Description

The Talon 25 ESC is perfect for 400-size helicopters on 6S LiPo or your go-to 3D foamie with up to 25 amps of power. Despite its compact size, it features an impressive 8 amp peak/3 amp continuous BEC, ensuring optimal servo performance. You can also take advantage of Castle's top-notch helicopter features and easily program it with the included free Castle Link coupon.

Includes:
  • Battery connectors (sold separately)
  • Motor connectors (sold separately)



Specifications:
  • Input Voltage Range: MIN: 2S LiPo
  • MAX: 6S LiPo
  • Max Continuous Amperage at full throttle: 25 amps
  • Max Voltage: 25.2V
  • BEC Voltage: 5.5 volts
  • BEC Output: 8 amp peak / 3 amp continuous (always check servo draw prior to first flight)
  • Size: Width: 0.72" (18.2mm) / Length: 1.72" (43.7mm) / Depth: 0.32" (8.1mm)
  • Weight (w/wires): 0.63 oz. (17.9g) / 0.28 oz (7.9g) without wires
  • Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
  • Telemetry Link Capable: Yes, except Battery Current
