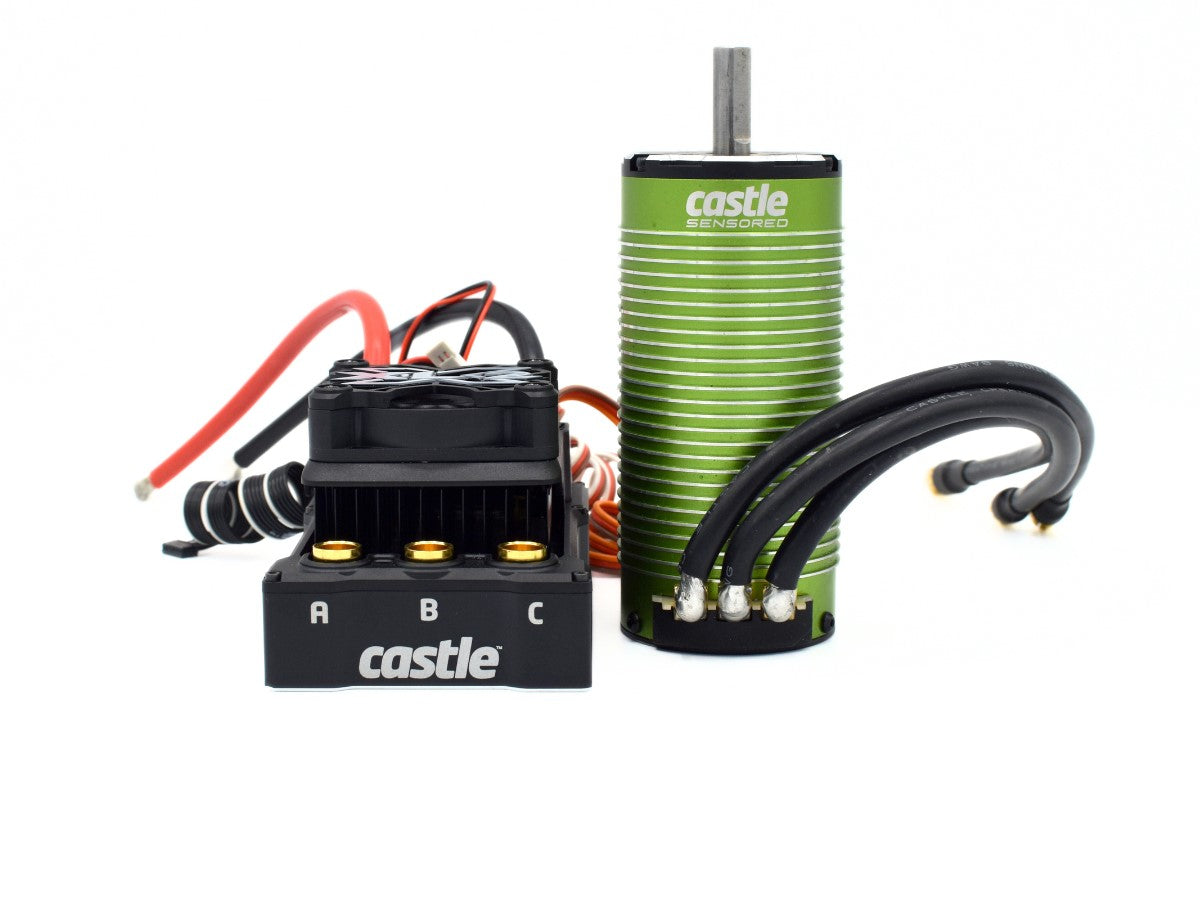

Castle Creations Mamba Monster XLX 8S 1/5 ESC Motor Combo 1721 Sensored Motor 1260kV

Castle Creations Mamba Monster XLX 8S 1/5 ESC/Motor Combo w/1721 Sensored Motor (1260kV)

The Castle Creations Mamba XLX 2 1/5 Scale Sensored Brushless Combo with 1721 1260Kv motor is a product guaranteed to redefine the limits of large scale RC. Though it shares the name of its predecessor, the Mamba XLX, this is an ESC that lives in a class of its own.

Reengineered from the ground up, the Mamba XLX 2 is packed with a potent combination of design, hardware and software advancements that will set a a higher standard for large-scale power systems. Designed for 1/5 Scale models weighing up to 42 lbs, the XLX 2 is an incredible power upgrade for the Arrma Kraton 8S and Outcast 8S, or Traxxas X-Maxx models! If you are looking for the ultimate upgrade for your speed run, drag racing or off-road rigs - the XLX 2 is a true heavyweight, with no contenders.

• Some vehicles may require aftermarket parts to allow ESC and/or motor fitment.
• The XLX 2 is not meant to operate while fully submerged in water.
• ESC fan is not water resistant

Features:

• Sensored, Sensorless and SmartSense™ running modes
• Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
• Premium forged heatsink for superior airflow and increased heat dissipation
• Oversized factory equipped thermally controlled 50mm fan
• Waterproof design for all weather conditions
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
• Data-logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for “on-the-fly” adjustments using your transmitter
• Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff
• Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake
• Easily tune and update ESC with USB and Bluetooth™ programming options
• Castle Link USB programming kit (coupon included with purchase)
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
• Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty

Specifications:

• ESC:
• Input voltage range: 3S-8S LiPo
• Length:  3.98” (101.2mm)
• Width: 2.49” (63.3mm)
• Height: 2.2” (55.8mm)
• Weight: 13.1oz (371g)
• On/Off Switch: Yes, Waterproof
• Cooling Fan: Yes, thermally controlled factory equipped (50mm) fully removable**
• Running Modes: Sensored, Brushed, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor. (Dust cover included in package for non-sensored operation)
• Wire Gauge: 8AWG
• Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters
• Motor:
• Application: 1:5th Scale vehicles weighing up to 25lbs such as the Arrma Kraton 8s, Arrma Outcast 8s, Traxxas X-Maxx
• Input Voltage Range: 3S(11.1V) - 8S(33.6V) LiPo
• Kv Rating: 1260Kv
• Max. RPM: 45.000
• Diameter: 1.87" (47.6mm)
• Length: 3.99" (101.2mm)
• Shaft Size: 22mm(Length), 8mm(Diameter)
• Weight(w/wires): Approx. 44oz/1.25kg
• Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
• Connectors: 8.0mm male connectors, 300mm Direct Connect Sensor Wire
