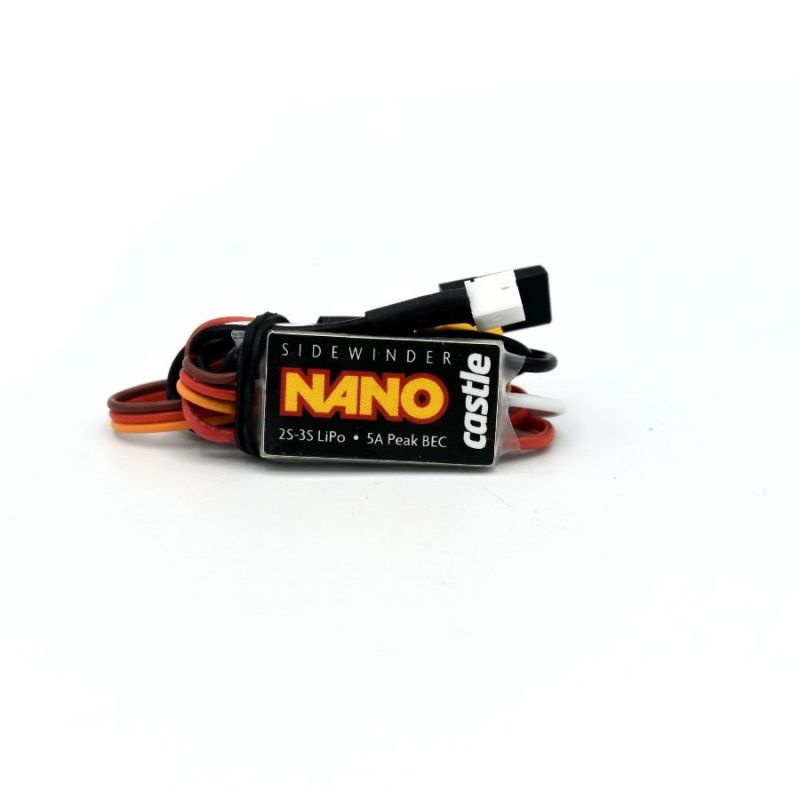

Castle Creations Sidewinder Nano Micro PnP ESC, 12.6V, with XT30 and JST Plugs 010-0176-01
Couldn't load pickup availability
Castle Creations are thrilled to add a performance upgrade solution to the ever-growing micro-scale phenomenon in R/C. The SIDEWINDER NANO PnP may be small in stature, but it's colossal in power and includes their proprietary CRYO-DRIVE Technology resulting in improved thermal performance during partial throttle operation where the majority of driving occurs. The Sidewinder Nano is ready-to-run out of the box but can also be "tuned" for the drivers' preferences using a Windows based PC and a Castle Link USB adapter (sold separately) , or with a mobile device using Castle B-Link Bluetooth Adapter (sold separately).
The PnP version comes with an XT30 battery connectors and JST plug pre-installed on the battery and motor wires. The JST plug is commonly found on most aftermarket outrunner style motors for 1/24th scale.
PRODUCT APPLICATIONS:
Ideal for 1/24th scale 2WD or 4WD vehicles up to 1lbs
Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24
1/18th crawlers up 2.25lbs (no rock racing/hill climbing)
Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18
Includes:
- Sidewinder Nano ESC
- ESC Quick Start Guide
Features:
- Input Voltage Range 2s-3s LiPo, 12.6V Max
- Sensorless and Brushed Running Modes
- Internal BEC 5V Fixed, 5A Peak
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)
- Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
- Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
- Audible alerts for easy diagnoses of common issues such as low-voltage cutoff
Specifications:
- Input Voltage Range: MIN: 2s LiPo MAX: 3s LiPo 12.6 V
- BEC Specifications: 5V fixed output, 5A Peak
- Operating Environment: Not waterproof, silicone conformal coated for water resistance.
- On/Off Switch: N/A
- Cooling Fan: N/A
- Size: Length: 1.1" (28mm) / Width: .61" (15.5mm) / Height: .37" (9.3mm)
- Weight (with no battery connector): 0.5 oz. (14 grams)
- Product Use Statements: Any appropriately sized outrunner can be utilized. A 1806 (stator size) is popular for the 24th scale crawlers, monster trucks, etc. 3000-3500ish kv for 2s, 2000-2500kv for 3s. (motor outside dimensions are ~16mm diameter, ~20mm length). A 2204 to 2208 (stator size) is a good choice for 1/18th scale crawlers (IE Axial UTB18, Traxxas TRX4m). Same kvs as above. (motor outside dimensions ~28mm diameter, ~26mm length)
- Application Guidelines: For 1/24th scale 2WD or 4WD (Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24) vehicles up to 1lbs. 1/18th crawlers up 2.25lbs (Axial UTB18, Traxxas TRX-4m, FMS FCX18) (no rock racing/hill climbing)
- Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link iOS or Android app with B-LINK Bluetooth Adapter (sold separately).
