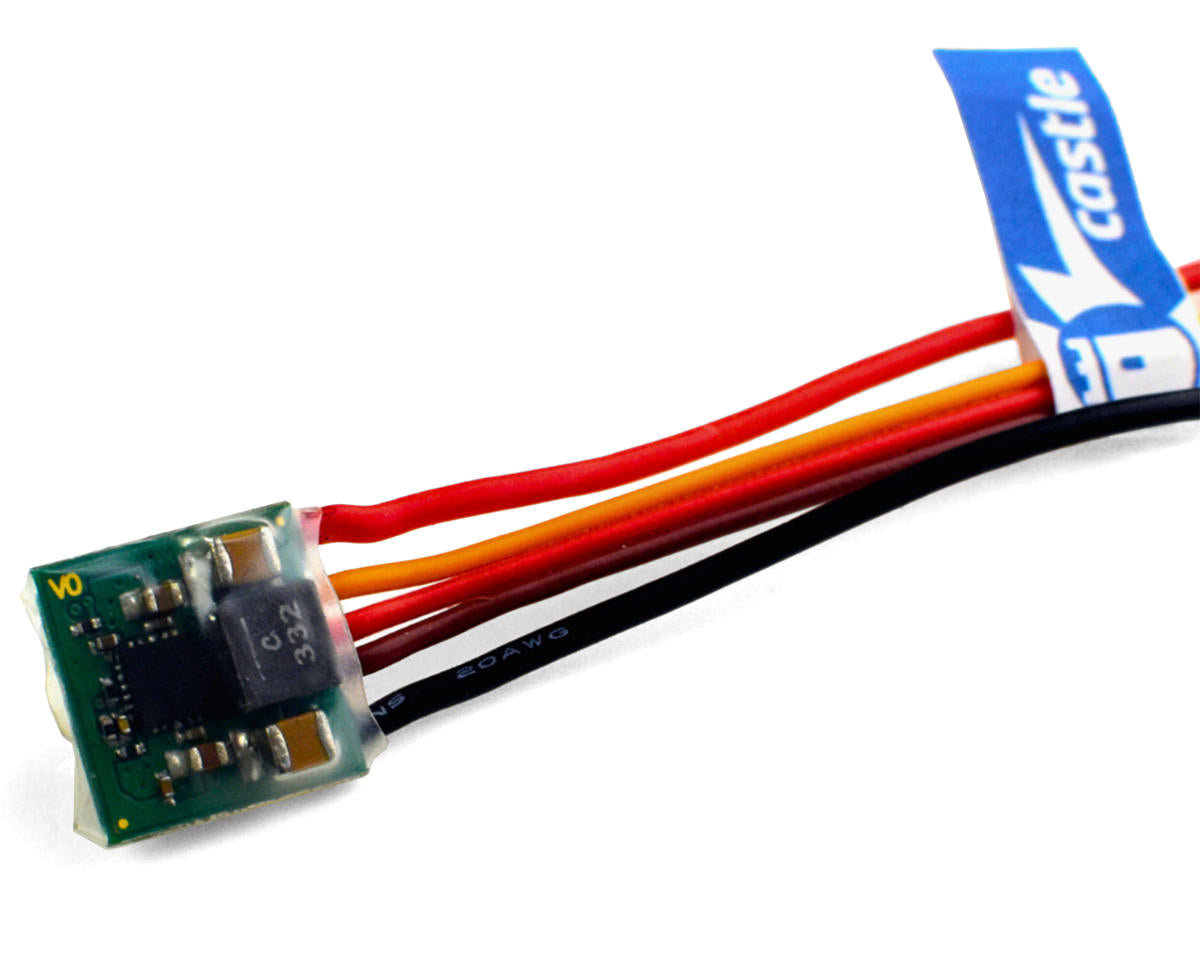

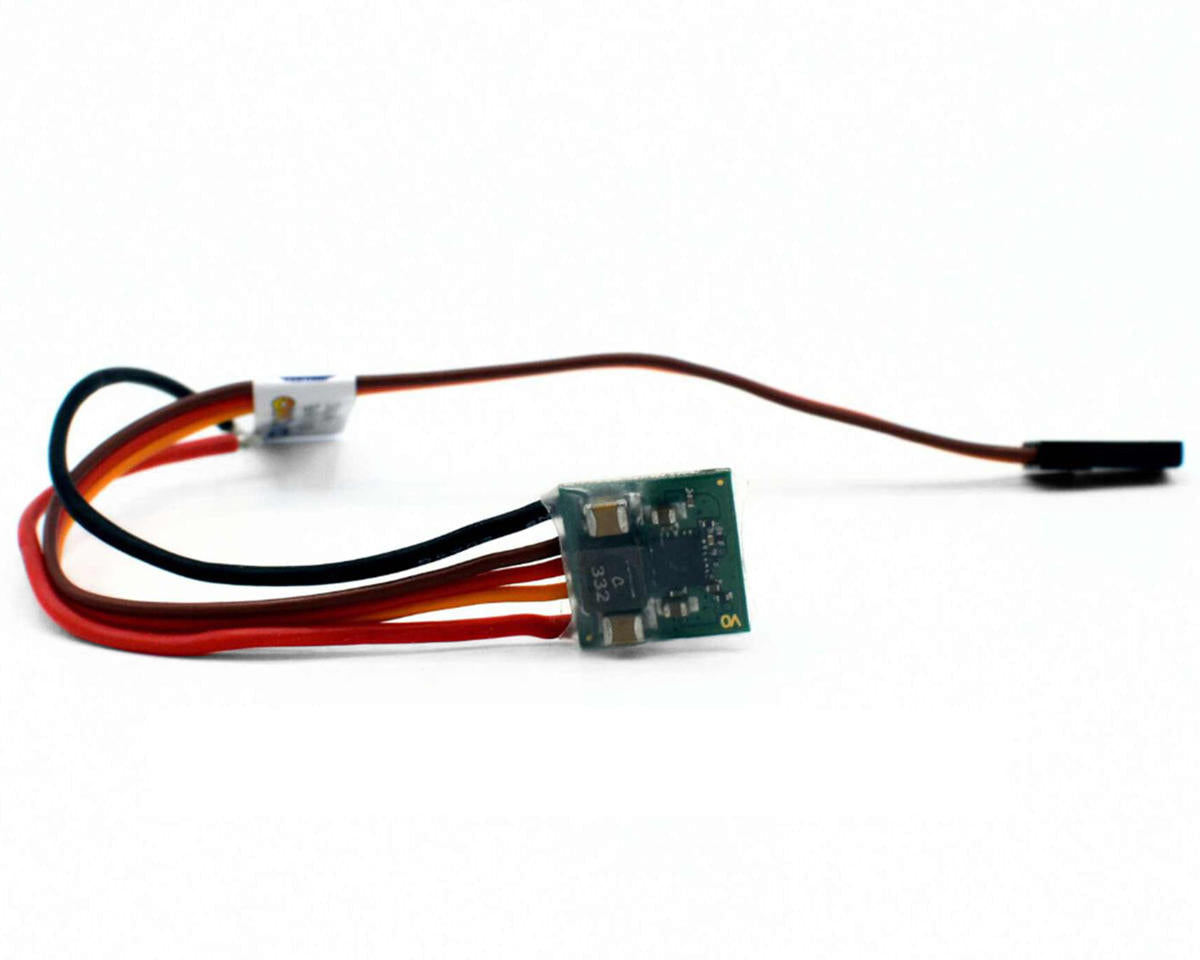

Castle Creations CC BEC Nano, 6A Output, 4S, 16.8V 010-0177-00

Some micro applications would benefit from a compact and ultra-light external BEC and that is why Castle Creations is introducing the CC BEC NANO as an addition to their Castle BEC offerings. The CC BEC Nano is an EXTRA small device that eliminates the need for a receiver battery. It draws voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which use high-power servos, where the ESC does not have an internal BEC, or the existing BEC is inadequate.
Weighing in at a mere .2 ounces and capable of delivering 4A continuous and 6A peak current, the CC BEC NANO may seem too good to be true.

Designed and assembled in USA, this unique package will provide clean power to sensitive radio equipment used in micro-R/C applications.

---

Specifications:

• Input Voltage Range: 2s-4s LiPo, 16.8V Max
• Current Ratings: 4A Continuous, 6A Peak
• Output Voltage: 8.4V Fixed
• Size: Width: .40" (10.2mm) Length: .57" (14.5mm) Height: .56" (14.2mm)
• Weight: .2 oz. (5.6g)
• Wire: 20AWG
• Items Needed for Operation: Battery connectors (sold separately)
• Product Use Statements: Read all wiring diagrams and usage advisories before using CC BEC NANO; PDF versions of the included manuals can be found on their support site. Not intended for use in wet conditions, BEC is not waterproof, it is silicone conformal coated for water resistance.
• Application Guidelines: 1/24th and 1/18th scale vehicles with a HV micro or mini servo
• Tech Notes: Must disable BEC built into ESC (if applicable).
