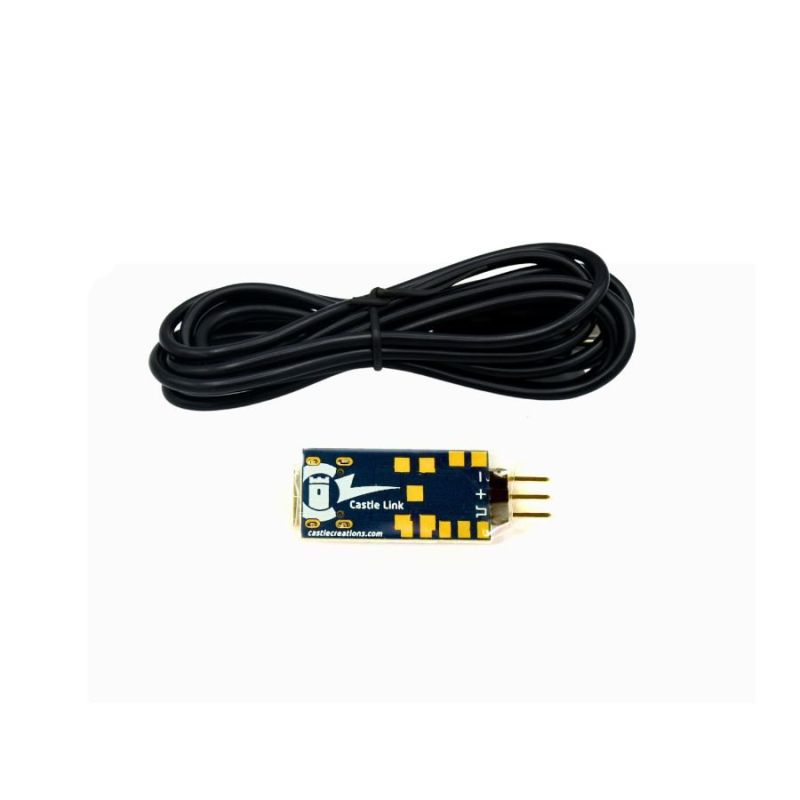

Castle Creations Castle Link V4 USB Programming Kit for Cobra Series 011-0173-00

Castle Link V4 is a 32-bit based USB adapter.

NOTE: Compatible with Cobra 8 and Cobra 10 ESCs only and uses the Castle Link 2 Windows software.

For all other ESCs, please purchase the Castle Link V3 USB adapter.

Program your Cobra 8 ESC on your Windows PC (10 or higher) with the Castle Link V4 USB programming kit.
Set up of programmable options with point and click ease
View your current program settings
Download and view the ESC's onboard data logs
Update ESCs with new firmware (if available)

Set-up instructions:
Download the Castle Link 2 software from Castle Creations' Downloads area on their website.
Run the Castle Link 2 installer and follow on-screen prompts.
Plug the Castle Link V4 adapter into the provided Type-C USB cable.
Connect the ESC's receiver lead to the Castle Link adapters prongs; the brown wire connects to the pin marked "GND" or "-".
Note: Castle Link Classic program is not compatible with the Castle Link V4 adapter and Cobra 8 ESC.

Castle Link contains a proprietary interface adapter and standard USB cable with Type-C port. All you need is an available Type-A USB port on your Windows 10 PC.

System Requirements: Castle Link 2 is compatible with Windows 10 or higher.
