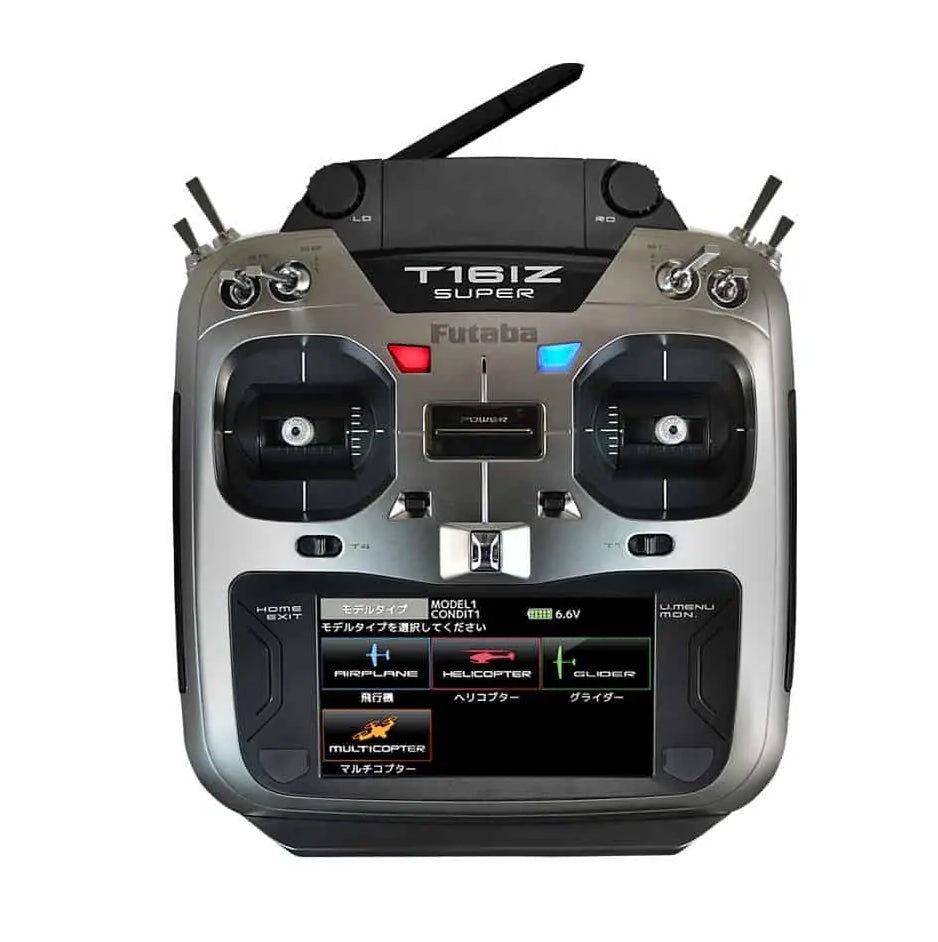

Futaba 16IZS Air Transmitter FASSTest 2.4 GHz System with R7208SB Receiver

16IZS Transmitter - 18-Channel Computer System 2-Stick, 18-Channel, FASSTest 2.4 GHz System, Replaces FUT01004420-1

Features:

• FASSTEST SYSTEM: The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.
• S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
• USB SIMULATOR CONTROL: The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function.
• COLOR TOUCH SCREEN LCD: T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
• MULTI HOLDER: T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.
• Voice Telemetry: The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
• SECURE DATA (SD CARD): Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.
• HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time.
• EDITING: The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
• FUNCTIONS: The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.
• STICK: Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.
• VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
• R7208SB: The system comes with the R7208SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

Includes:

• T16IZS Transmitter (Air Version includes ratcheting throttle, Helicopter Version includes smooth throttle)
• R7208SB Receiver
• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Neck Strap
• Manual (Printed short version, full version can be found online)

16IZS Specifications:

• TRANSMITTER FREQUENCY: 2.4 GHz band
• OPERATING SYSTEM: 2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
• POWER SUPPLY: 7.4 V LT2F2000B Lithium-polymer battery
• RF POWER OUTPUT: 100 mW EIRP

R7208SB Specifications:

• SIZE: 24.9 x 47.3 x 14.3 mm/0.98 x 1.86 x 0.56 in
• WEIGHT: 12.0 g/0.42 oz
• POWER REQUIREMENTS: 6.6 V LiFe Battery
• CURRENT DRAIN: 75 mA
• RF POWER OUTPUT: 25 mW EIRP

Futaba 16IZS Transmitter Compatible Receivers: (As of June 29, 2022)
S-FHSS PROTOCOL: R2008GS, R2008SB, R2106SB, R2001SB, R2000SBM
T-FHSS TELEMETRY PROTOCOL: R3001SB, R3004SB, R3006SB, R3008SB
T-FHSS MONO (NON-TELEMETRY): R3206SBM, R3106GF
FASST7 AND FASST MULTI: R6004FF, R6008HS, R6014HS, R6016HF, R616FFM, R617FS, R6202SBW, R6203SB, R6208SB, R6303SB, R6303SBE
FASSTest12 and FASSTest18: R7003SB, R7006SB, R7008SB, R7108SB, R7014SB
