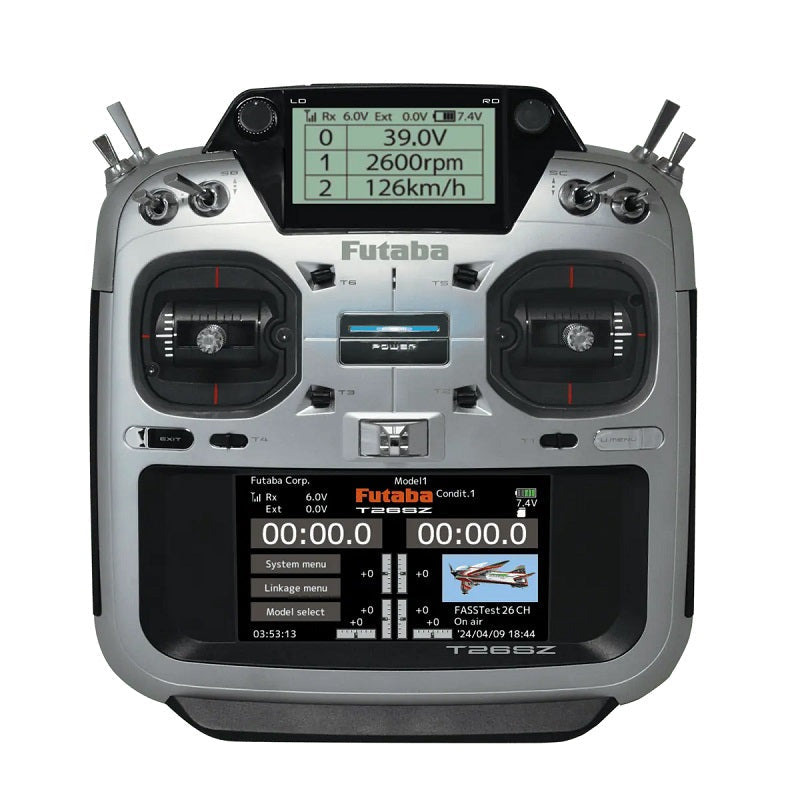

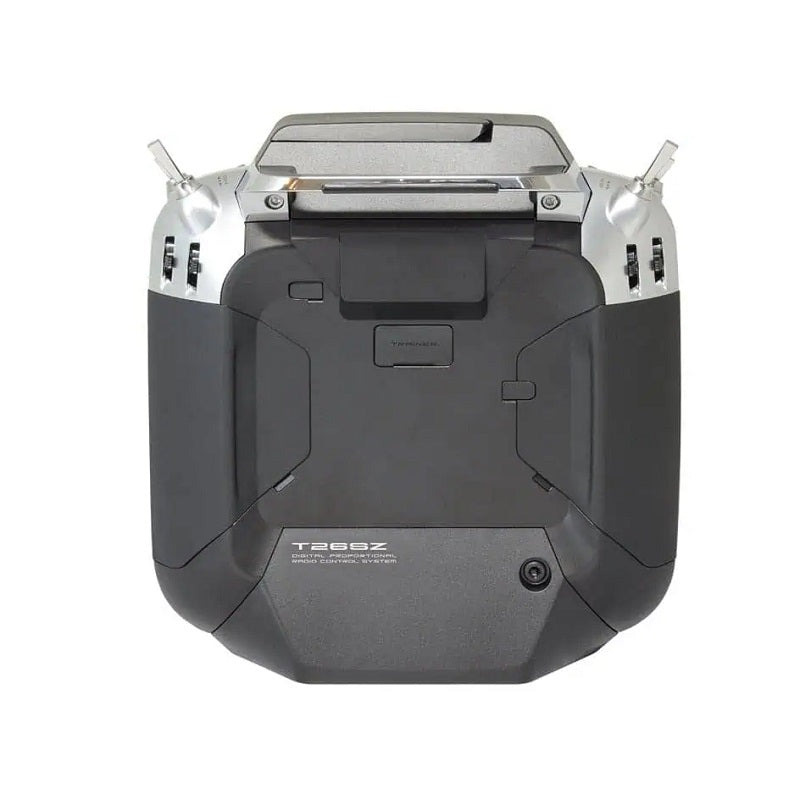

Futaba 26SZ Transmitter - 26-Channel Digital Proportional RC System 01004437-1
Regular price
$1,499.99
Couldn't load pickup availability
Transform your RC experience with the Futaba 26SZ Transmitter! With an impressive 26-channel digital proportional system, this transmitter offers precise control and maximum versatility. Upgrade to the next level of RC performance and take your skills to new heights.
*NOTE: The battery in the T26SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.
Includes:
- T26SZ Transmitter
- Air Version includes ratcheting throttle

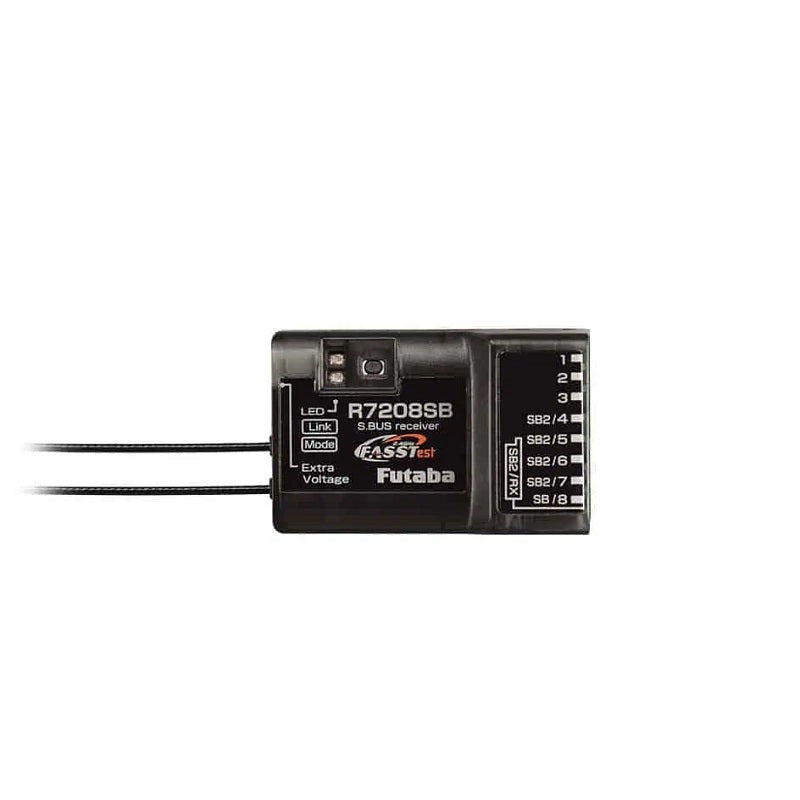

- R7208SB receiver
- LT2F2000 Battery
- Switch Harness
- Mini Driver
Features:
- FASSTEST SYSTEM: The 26SZ transmitter has adopted the bidirectional communication system "FASSTest". Data from the receiver can be checked in your transmitter. FASSTest is a dedicated system with a maximum of 26 channels and 2.4 GHz.
- COLOR TOUCH SCREEN LCD: T26SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
- S.BUS2 SYSTEM: Using the S.Bus2 system, multiple servos, gyros, and telemetry sensors can be easily installed with a minimum of cables.
- MODEL TYPES: Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
- LIFE BATTERY: The 26SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.
- SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED: Model data can be saved to an SD card (SD: 32MB - 2GB, SDHC: 4GB-32GB). When T26SZ transmitter software files are released, the software can be updated by using an SD card update.
- EDIT BUTTON: Two edit buttons are provided, and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
- VIBRATION FUNCTION: Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
- SPEECH FUNCTION: A function is equipped to allow the system to provide audible telemetry data. This function can also be utilized with commercially available earphones.
Transmitter Specifications:
- TRANSMITTER FREQUENCY: 2.4 GHz band
- SYSTEM: FASSTest26CH, FASSTest18CH, FASSTest12CH, T-FHSS, S-FHSS, switchable
- POWER SUPPLY: 7.5V FT2F2100BV2 LiPo battery
- FREQUENCY BAND: 2.4 GHz
- RF POWER OUTPUT: 100mW EIRP
Receiver Specifications:
- SIZE: 24.9 x 47.3 x 14.3 mm; 0.98 x 1.86 x 0.56 in
- WEIGHT: 12.0 g; 0.42 oz
- POWER REQUIREMENTS: 7.4 V LiPo Battery
- CURRENT DRAIN: 75 mA
- RF POWER OUTPUT: 25 mW EIRP
