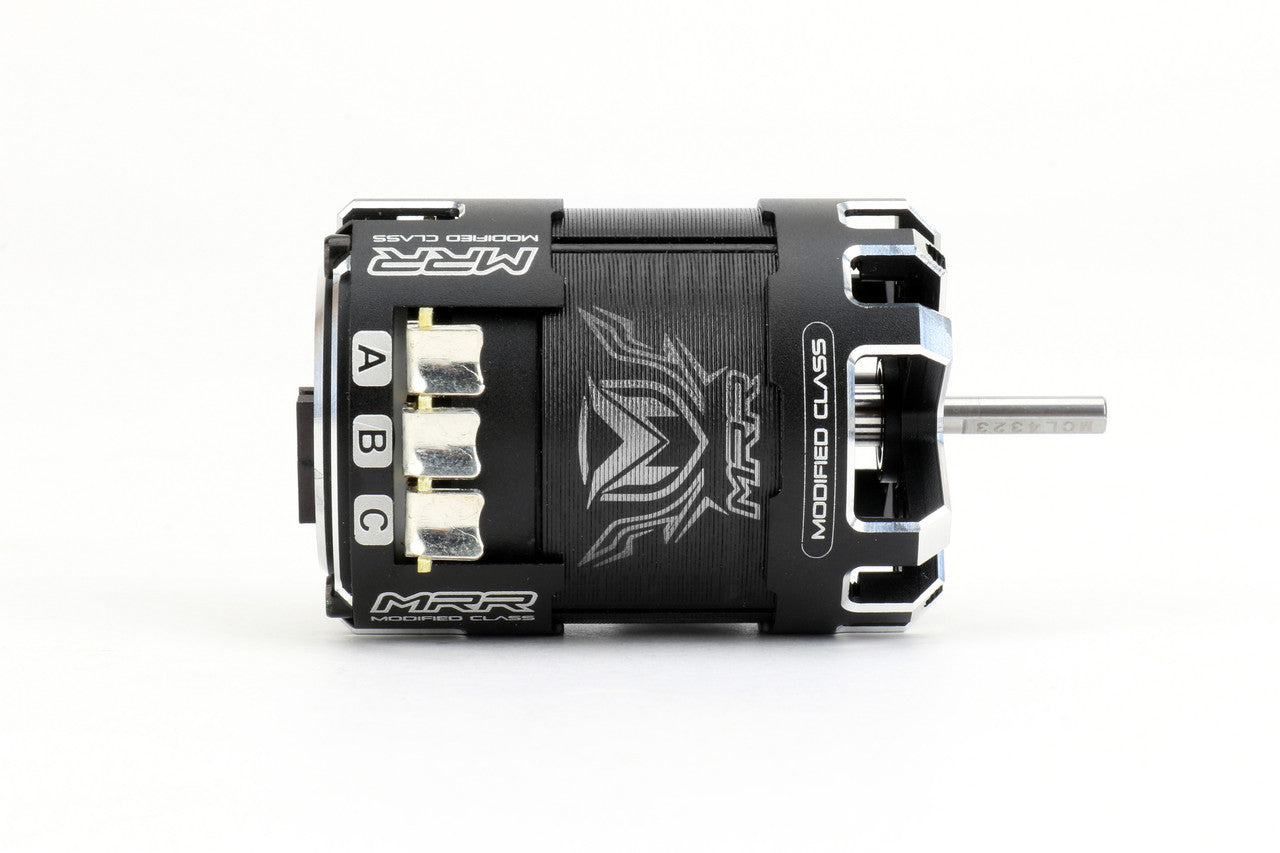

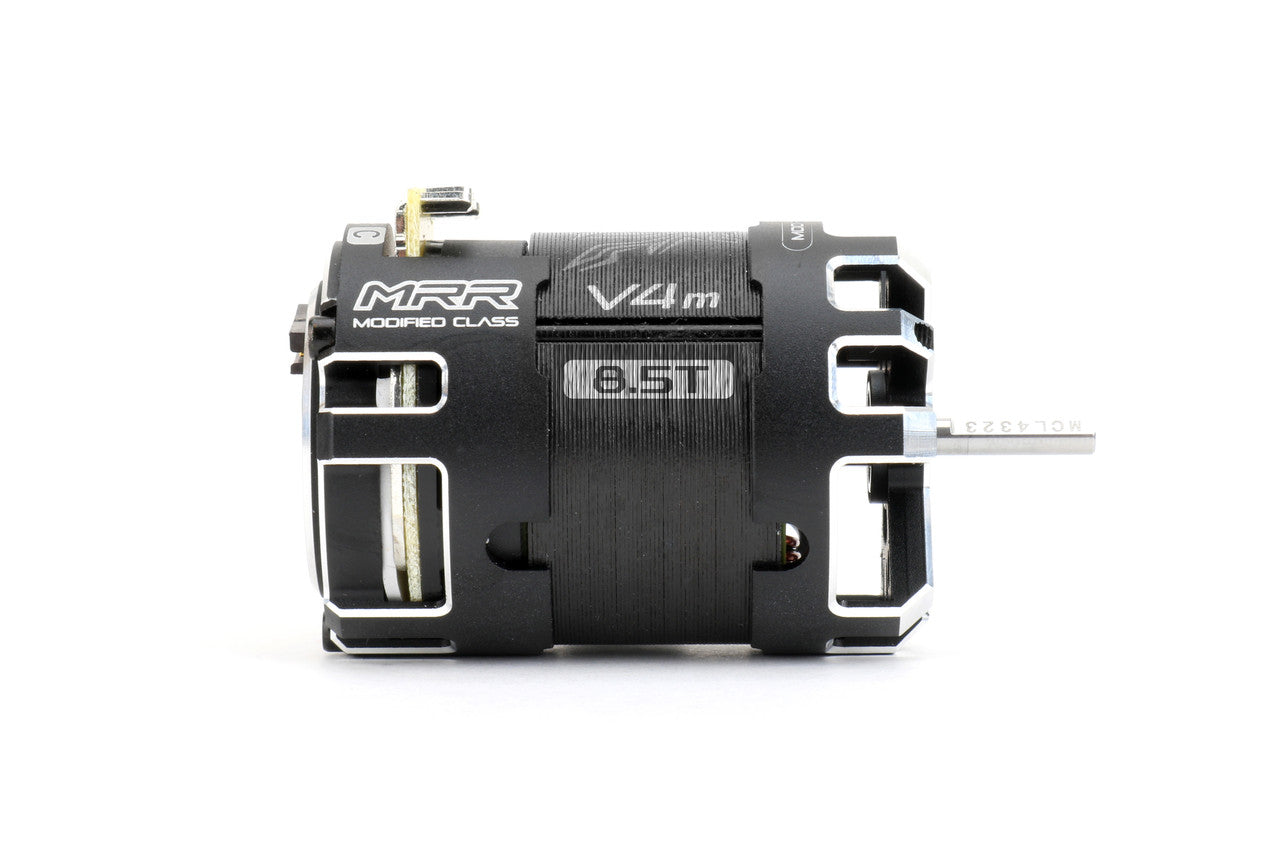

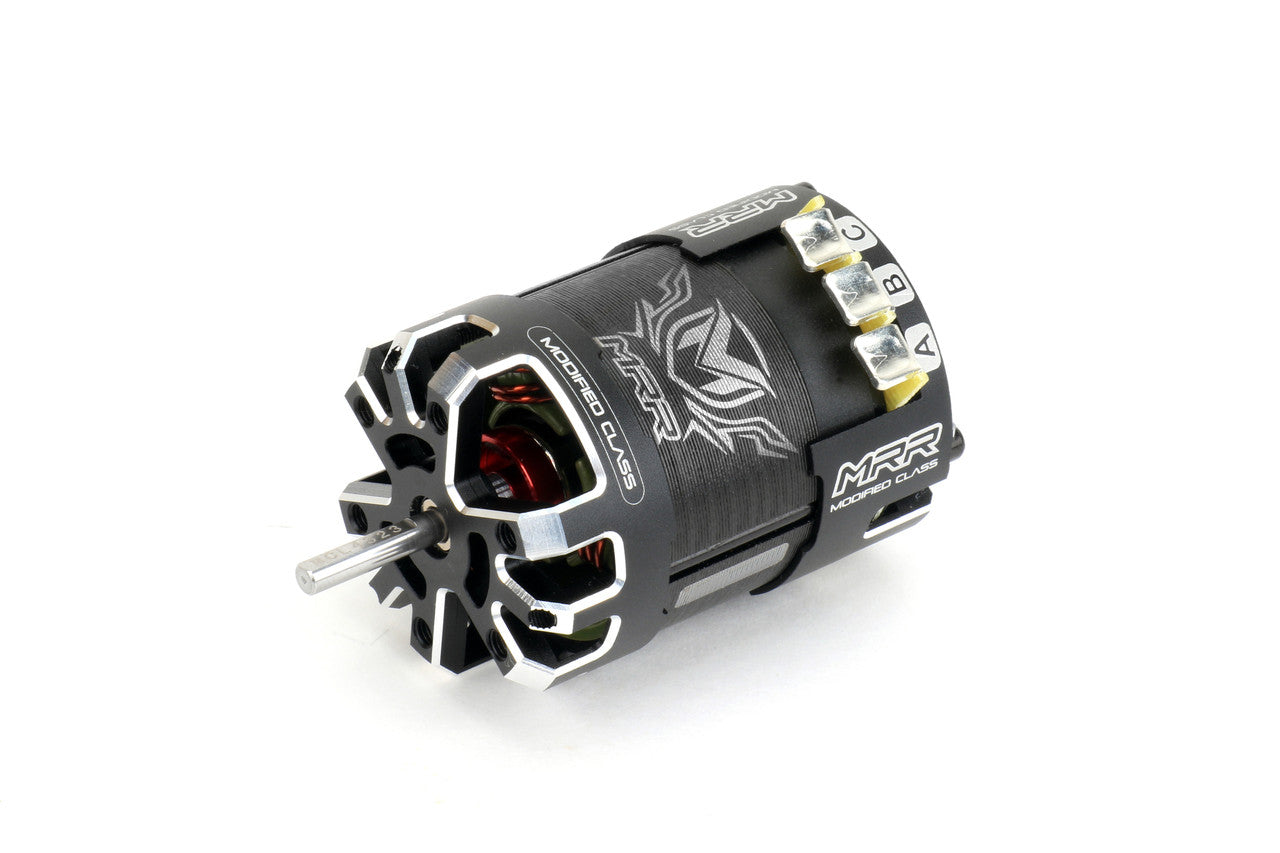

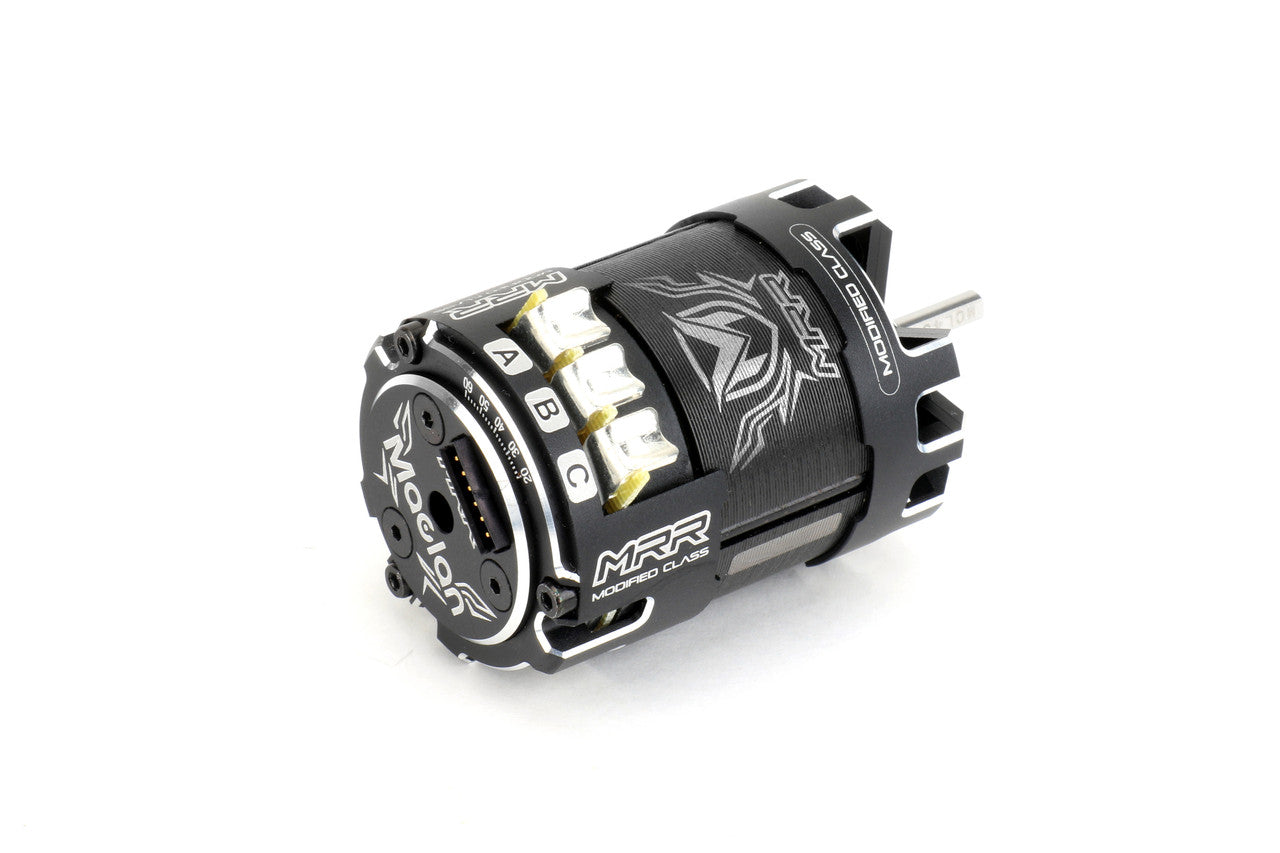

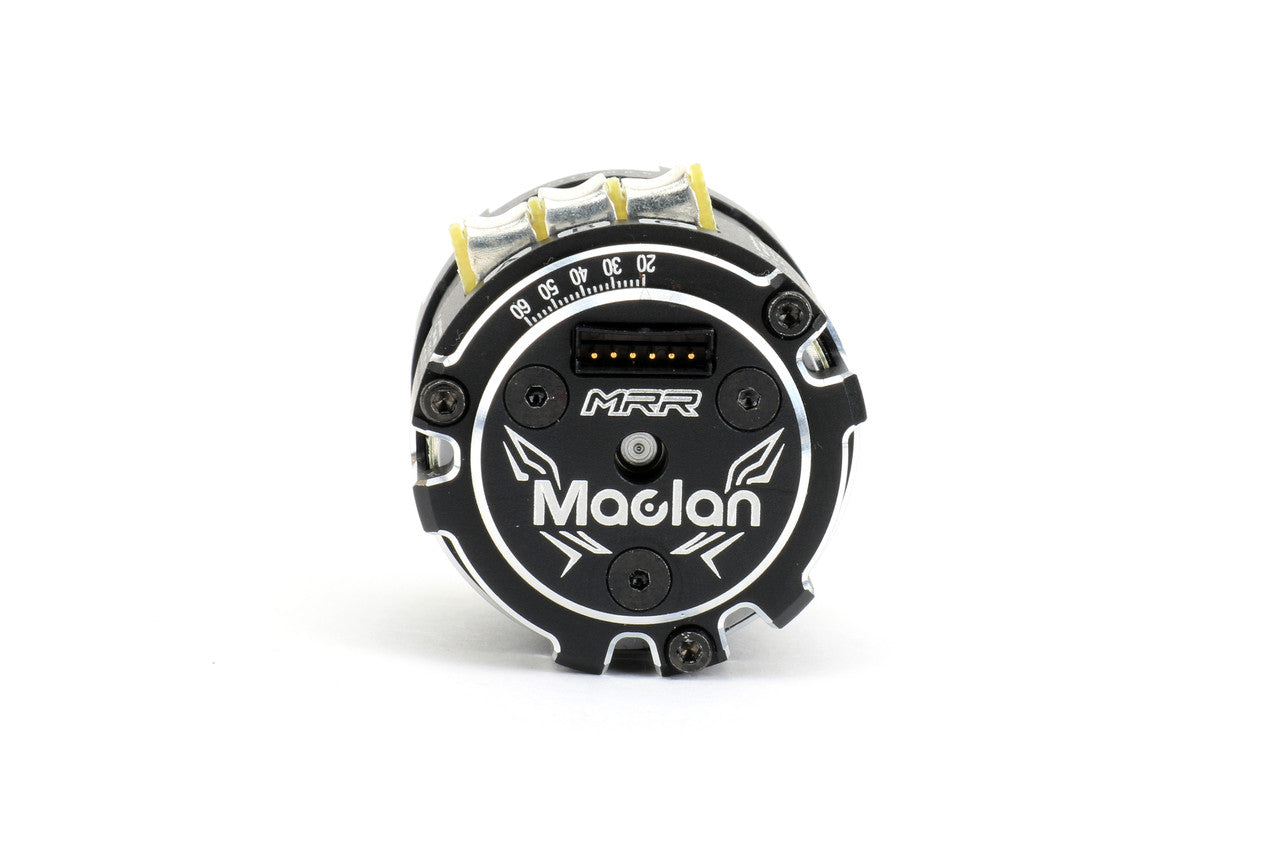

Maclan Racing MRR V4m 8.5T Sensored Competition Motor MCL1085

Maclan Racing proudly introduces the MRR V4m competition motors, representing their latest and most innovative contributions to the world of RC racing. They've meticulously enhanced every aspect to elevate overall performance to new heights. The advancements in this generation are nothing short of remarkable, promising a discernible boost in performance.

Here's what you can expect:
American Craftsmanship: Maclan Racing's motors are engineered and developed right here in the United States, reflecting their commitment to quality and precision.

Regulation-Compliant Stator: They've introduced a stator shape that conforms to the latest ROAR regulations, ensuring the highest level of legal performance.

Enhanced Sensor Placement: Their sensors have been strategically repositioned for more accurate readings, contributing to the motor's precision and responsiveness.

Modified Class (3.5T to 10.5T): The V4m modified versions come equipped with the 12.20mm Ultra Smooth Rotor as the standard configuration, with a wide range of optional rotors (12.1/12.2/12.3/12.5mm) further enhancing the motor's capabilities.

The MRR V4m motors are the culmination of Maclan Racing's dedication to innovation and performance, making them the ideal choice for competitive RC racers looking to push the boundaries of their performance.

---

Specifications:

• Short Stack: No
• Case Length: 52mm
• Case Diameter: 36.00mm
• Shaft Extension: 14.00mm
• Shaft Size: 3.17mm
• Weight: 155g+/-5g
• Screws Size (end cap): M2.5*P0.45*6L*4.3L
• Screw Size (motor can): M2.3*P0.4*46.5L*10L
• Front Bearing Size: R-2ZZ (9.525*3.175*3.9675t)
• Rear Bearing Size: R-2ZZ (9.525*3.175*3.9675t)
• Poles: 2-Pole
• Default Rotor: 12.20mm Smooth Rotor (Red) (P/N MCL4323)
• Optional Rotor: 12.10mm Ultra Smooth Rotor (Red) (P/N MCL4322) / 12.30mm High Torque Rotor (Black) (P/N MCL4324) / 12.50mm Ultra High Torque Rotor (Black) (P/N MCL4325)
• ROAR Approved: Yes
• Limited Factory Warranty: 30-Day
