Hitec

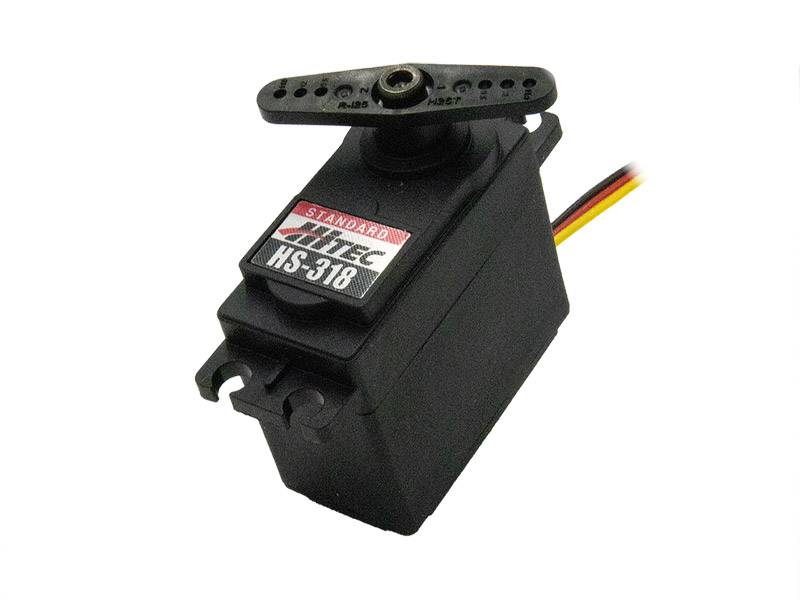

Hitec HS-318 Standard Economy Analog Sport Servo, 25 Tooth Spline 31318S

Only 2 left
SKU: HRC31318S
$18.95

Product details

  • Vendor Hitec
  • SKU HRC31318S
Description

The HS-318 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with a 25 tooth spline, precise resin gears and SMT circuitry, the HS-318 represents a remarkable value in today's R/C market.

Accessories:
Nylon Gear Set
Plastic Case Set
Applicable Horns

Radio Control Applications:
Parkflyer: N / A
Sport Plane: 50 - 64 oz.
Sailplane: N / A
3D Performance: N / A
Scale: 50 - 64 oz.
Electric Helicopter: N / A
Gas Helicopter: N / A
On Road: 1/8th
Monster Truck: 1/8th
Buggies: 1/8th
Truggies: 1/8th
Short Course / Truck: 1/8th
Crawlers: 1/8th
Sail Boat: 1-2 meter
Power Boat: 1/10th



Features:
  • Low Cost Standard Size Servo
  • 25-Tooth Output Spline
  • Reliable Three-Pole Ferrite Motor
  • Durable Resin Gears
  • Popular Selling Servo



Specifications:
  • Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
  • Speed (Second @ 60deg): 0.19 ~ 0.15
  • Maximum Torque Range oz. / in.: 42 ~ 51
  • Maximum Torque Range kg. / cm.: 3.0 ~ 3.7
  • Current Draw at Idle (@ 6V): 8.0mA
  • No Load Operating Current Draw (@ 6V): 180mA
  • Stall Current Draw (@ 6V): 800mA
  • Dead Band Width: 5 us
  • Dimensions (Inches): 1.58 x 0.79 x 1.46
  • Dimensions (Metric): 40.0 x 20.0 x 37.0
  • Weight (Ounces): 1.52
  • Weight (Gram): 43.0
  • Circuit Type: Analog
  • Motor Type: 3 Pole Metal Brush Ferrite
  • Gear Material: 4 Resin
  • Bearing Type: 1 Resin Bushing
  • Output Shaft (type / 0mm): Standard 25
  • Case Material: Plastic
  • Dust / Water Resistance: IP4X
  • Connector Gauge (AWG) / Strand Count: 24
