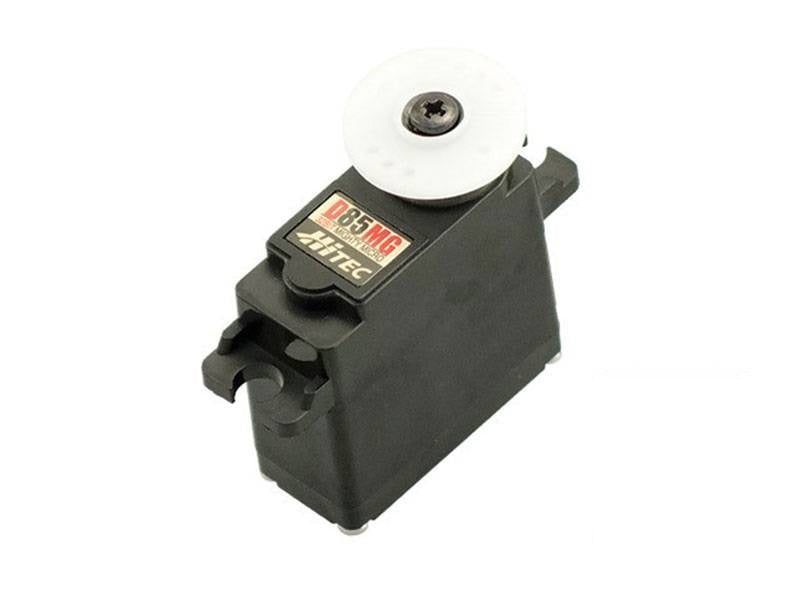

Hitec RCD D85MG 32 Bit Premium Metal Gear Micro Servo .13sec/60oz @ 6.0V 36085S

Engineered with state-of-the-art D-Series technology, this "micro but mighty" servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles (no internal combustion engines, electric only)

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60 degrees) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 50 ~ 60
Maximum Torque Range kg. / cm. 3.6 ~ 4.3
Current Draw at Idle 3 mA
No Load Operating Current Draw 290 mA
Stall Current Draw 2,150 mA
Dead Band Width 2 microsecond

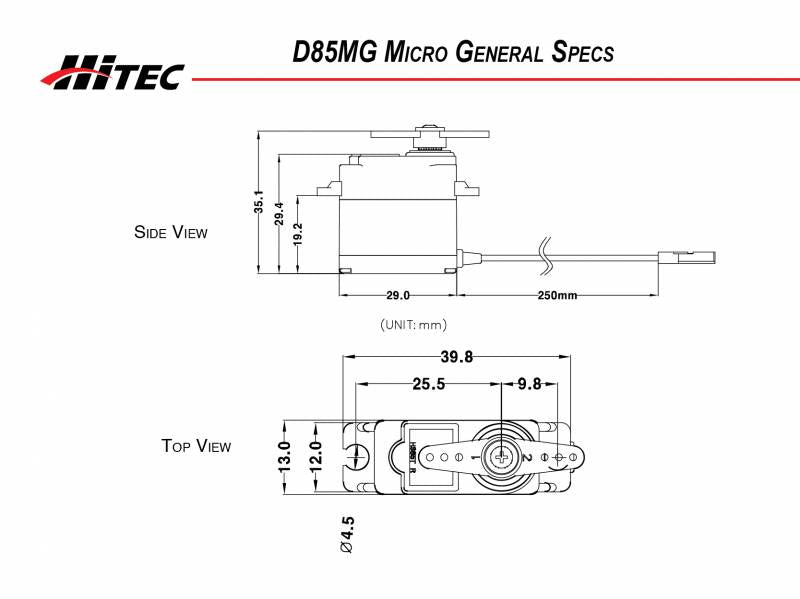

Physical Specifications
Dimensions (Inches) 1.14 x 0.51 x 1.18
Dimensions (Metric) 29.0 x 13.0 x 30.0
Weight (Ounces) 0.77
Weight (Gram) 21.9
Circuit Type 32bit Programmable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
