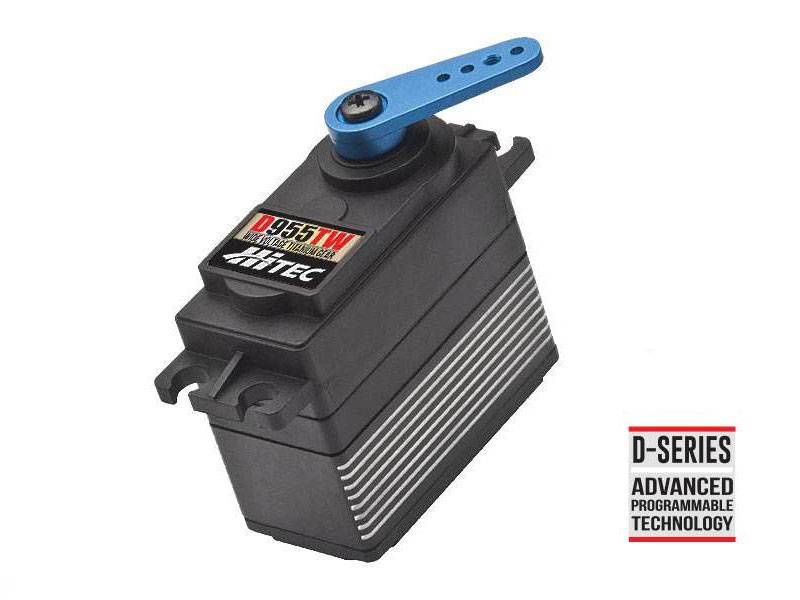

Hitec RCD D-955TW 32-Bit High Torque Titanium Gear Servo .12sec/404oz @ 7.4v

As with Hitec's entire "D" line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. The reliably-strong titanium-geared D955TW replaces the well-known HS-7955TH. Advancing servo technology and providing superior engineering has always been Hitec's mission and that continues today as we expand their outstanding D-Series product line.



Features:

Nylon Reinforced Plastic Upper and Lower Case

Diamond Cut Aluminum Heat Sink Center Case

Coreless Metal Brush Motors

Dual Ball Bearing Supported Output Shaft

Dust Resistant and Splash Proof Case

1M Cycle Long Life Potentiometer



Specifications:

25-Tooth Output Spline

Torque @ 4.8v - 18kg/251oz-in

Torque @ 7.4v - 29kg/404oz-in

Speed @ 6v - 0.19 sec/60 deg

Speed @ 7.4v - 0.12 sec/60 deg

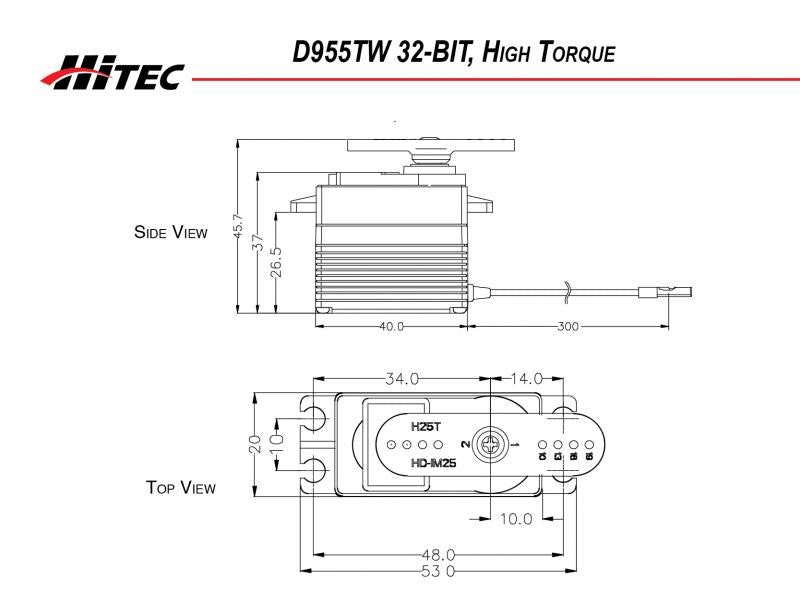

Dimensions L x W x H (mm): 40.0 x 20.0 x 38.0
