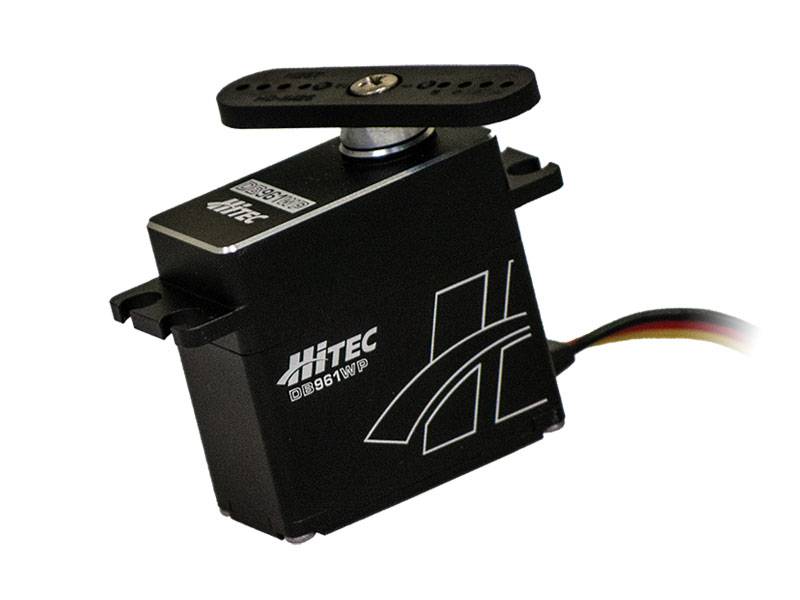

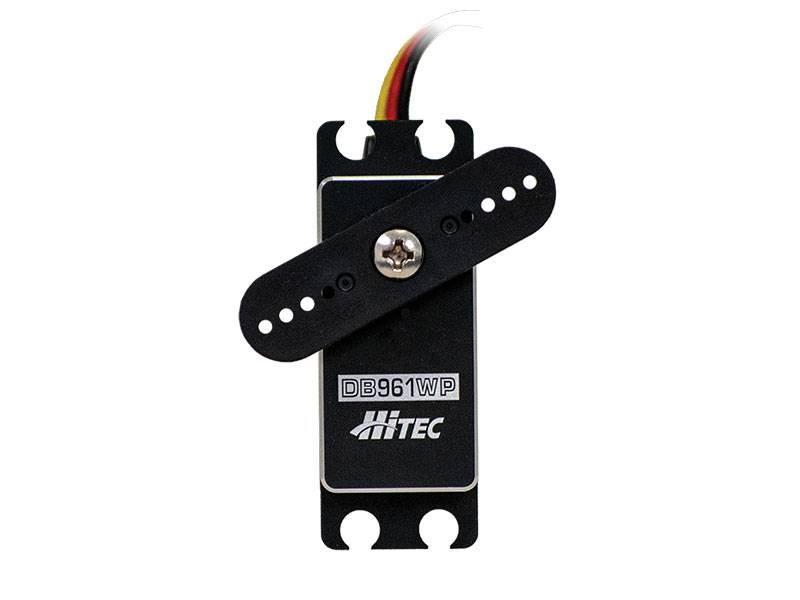

Hitec DB961WP 20mm, Ultra-Premium, Brushless, Steel Gear, Servo 36961S

Now more than ever, today's competition quality off-road vehicles and giant scale aircraft demand uncompromised quality and performance in the never-ending race for gold. The Ultra-Premium DB961WP answers that call for increased durability, providing the Pro-Class dependability and reliability you demand, regardless of your mission. Coupling massive torque and high speed with its wide voltage range and high resolution/low deadband circuitry, the DB961WP will deliver your hobby to a new level.

Features:

• Voltage Range is 4.0V - 8.4V
• Torque: 763 in./oz. @6V & 7.4V
• Optimized for up to 2-Cell LiPo Use
• Ultra-Performance Brushless Motor
• 32-Bit MCU Technology / 4096 Resolution
• High Resolution/Low Deadband Circuitry
• User Programmable Thermal Cutoff
• Full Programmability
• IP67 Waterproof Rating
• Smart Sense Technology for Servo Analytics
• H25T Industry Standard Output Spline

Performance Specifications:

• Operating Voltage Range (Volts DC): 4.0V ~ 8.4V
• Speed (Second @ 60 degrees): 0.15 @ 7.4V
• Maximum Torque Range oz. / in.: 763.81 @ 7.4V
• Maximum Torque Range kg. / cm.: 55.0 @ 7.4V
• Current Draw at Idle: 35mA @ 7.4V
• No Load Operating Current Draw: 500mA @ 7.4V
• Stall Current Draw: 6,500mA @ 7.4V
• Dead Band Width: 1us

Physical Specifications:

• Dimensions (Inches/mm): 1.58 x 0.79 x 1.54 in. / 40.0 x 20.0 x 39.0
• Weight (Ounces / Grams): 3.18 / 90.0
• Circuit Type: 32bit Programable Digital
• Motor Type: Brushless
• Gear Material: 5 Steel Gears
• Bearing Type: 2 Ball Bearings
• Output Shaft: H25T
• Case Material: Aluminum
• Dust / Water Resistance: IP67 Rated
• Connector Gauge (AWG) / Strand Count: 20AWG
