Kyosho 1/10 Scale Radio Controlled Electric Powered 4WD Racing 30617C

Only 3 left
SKU: KYO30617C
Regular price $319.99

Product details

  • Vendor Kyosho
  • SKU KYO30617C

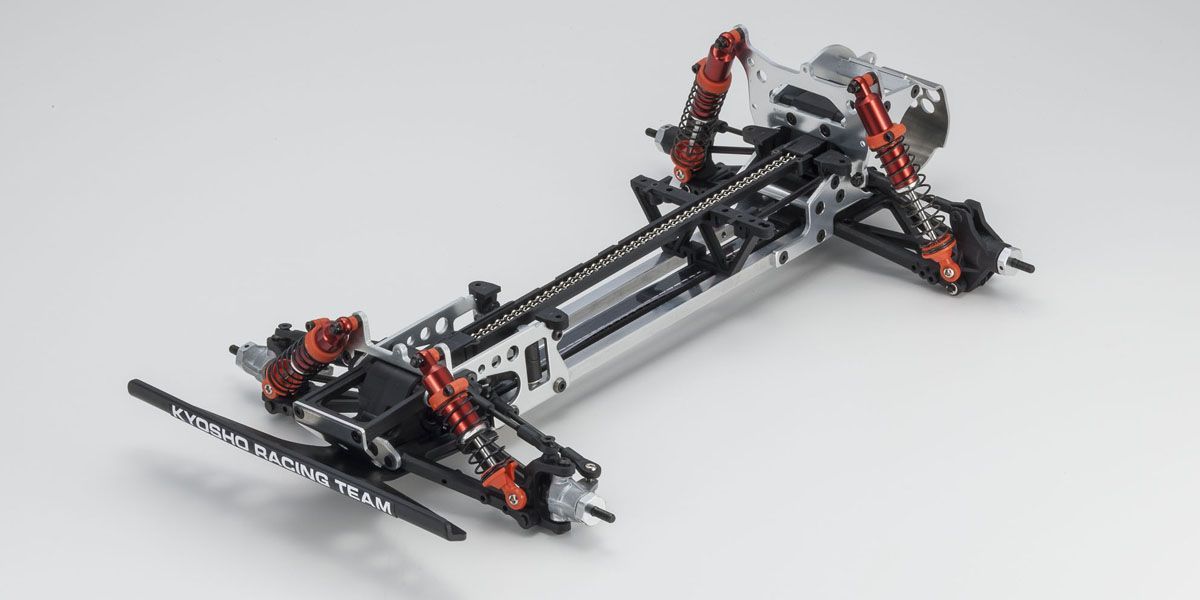

Speed has form. The winning formula is...The first OPTIMA model was heralded as a technical masterpiece at its release in 1985 and from then, Kyosho has set the standard in R/C development. Memories of the OPTIMA are fresh even after 30 years and its stylish form and ruthlessly efficient performance still resonate amongst modern racing machines. Now the new OPTIMA is ready to continue the battle for racing dominance, embodying the latest in technological evolution but with the distinctive OPTIMA style. The narrow backbone shaped chassis provides the platform for optimal geometry with large steering angles and double wishbone suspension with long 35mm suspension stroke. Recreated in the image of the original design, the the 4WD chain system is housed inside a sealed compartment and the gears and gearbox at the center of the drive train are equipped with robust metal counter gear pinion and rear diff case. The drive train also features a slipper clutch and precision 48-pitch gear modules that reduce drive loss and fulfill the potential of modern power sources. Modern features include the choice of chain drive or belt drive as well as big bore shocks on front and rear that have been recreated in the original OPTIMA colors, plus hex screws. As a true racing partner, the OPTIMA is ready to race again with the latest advancements in driving performance.


Features:
  • Length: 395mm
  • Width: 240mm
  • Height: 120mm
  • Ground Clearance: 36mm
  • Wheelbase: 260mm
  • Tread (F/R): 204mm / 204mm
  • Tire(F/R): 86f x 40mm / 86f x 40mm
  • Gear Ratio: 9.24:1
  • Weight: approx. 1,600g
  • Motor: 540 class size
  • Battery: Ni-MH / Li-PO ?Li-PO: Standard Size / short size
  • R/C System: 2 channel, 1-servo, ESC

Includes:
  • Decals
  • L-shape hex wrench
  • Cross wrench
  • Shock wrench
  • Shock oil
  • Grease
  • Threadlock glue
  • Clear Lexan body

Needed to Complete:

  • 2-ch, 1-servo R/C system for cars
  • 540-class motor (30-27 turns recommended)
  • ESC compatible with motor
  • Battery pack for chassis
  • Battery charger
  • Paint for painting the polycarbonate body
  • Batteries for R/C transmitter
  • Tools (1.5, 2.0, 3.0mm hex wrench)
