Kyosho 1/8 EP Motorcycle Hanging on Racer Honda NSR500 1991 Kit 34932B

Only 1 left
SKU: KYO34932B
$159.99

Product details

  • Vendor Kyosho
  • SKU KYO34932B
Description

Experience the thrill of racing with the Kyosho 1/8 EP Motorcycle Hanging on Racer Honda NSR500 1991 Kit 34932B. This high-quality kit allows you to build your own motorcycle and relive the excitement of the iconic Honda NSR500. Fulfill your need for speed and show off your assembly skills with this amazing kit!

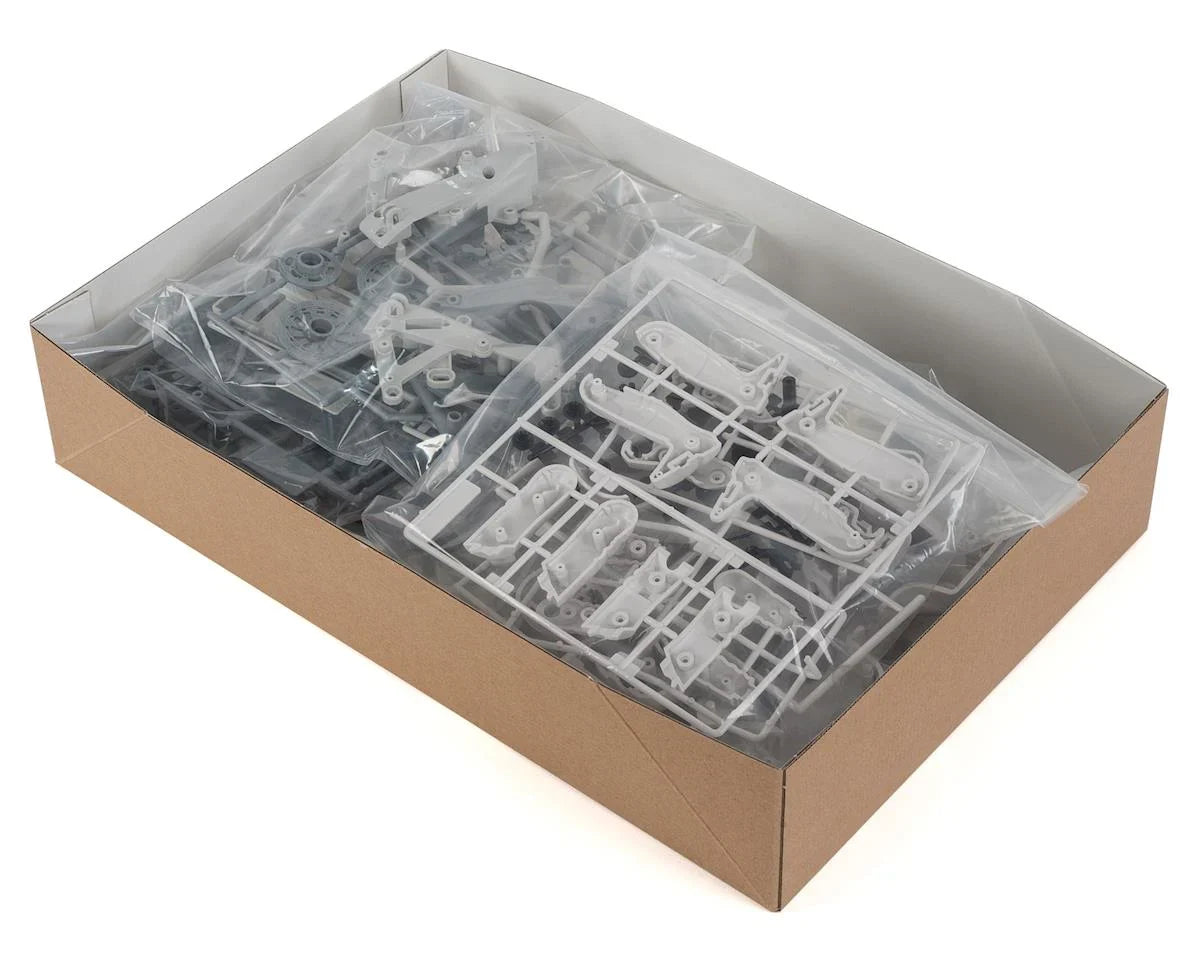

Includes:
  • Chassis kit
  • Pinion gear (10T, 12T, 14T)
  • Grease
  • Cross wrench
  • Pinion gear tool
Required to Complete:
  • 2ch R/C system
  • Battery for model (7.2V-1600mAh Ni-MH recommended)
  • 1 x servo (L32xW16x H31.5mm max.)
  • 1 x ESC (L34xW24xH14mm max.)
  • Batteries for transmitter
  • Battery charger for model battery
  • Charger Adapter
  • Paint and paintbrush
Features:
  • Amazing level of scale detail is recreated with each component including inverted front fork suspension, brake disk & calipers etc. Power of the Le Mans DM20 motor is transferred to the chain drive system through the drive chain and sprocket. Optional reinforced sprocket is also available.
  • Rider figure incorporating 13 joints is used to control steering. As the rider's waist drops into the corner, the knee protrudes as the head moves in the direction of the corner exit while the rider hangs on!

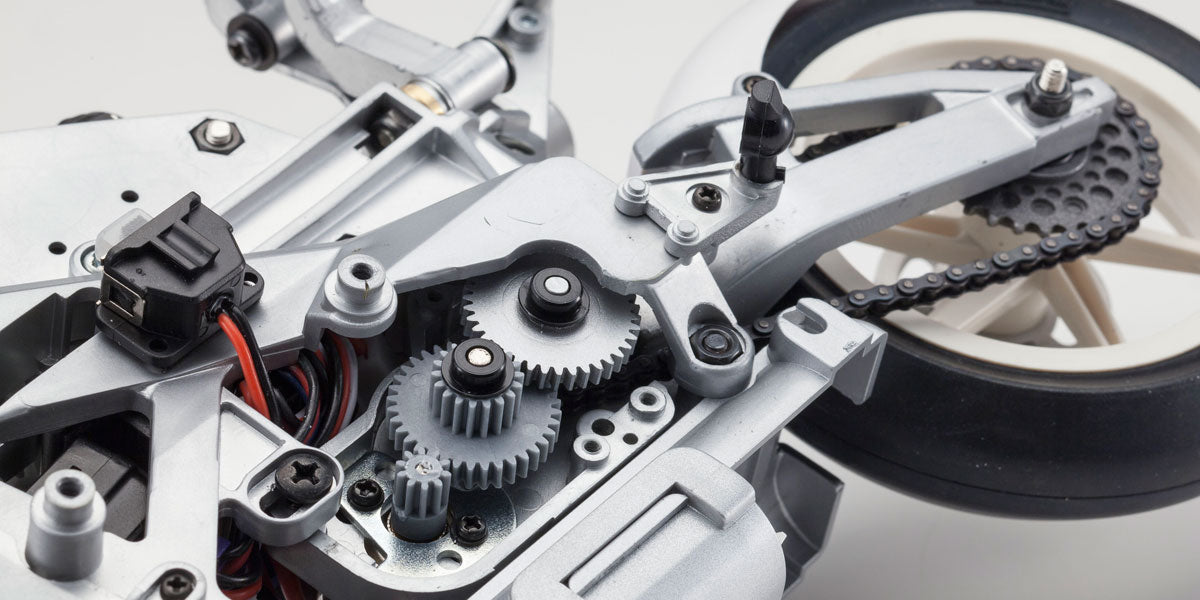

  • 3rd gear changed from resin to metal to increase strength of drive train and improve durability.
  • Unique S.D.S.S steering system leans the front forks from side to side while the link mechanism in the driver figure drops its waist into corners for steering control.
  • Slits in the dummy radiator replicate scale appearance and channel airflow for cooling the motor and ESC.

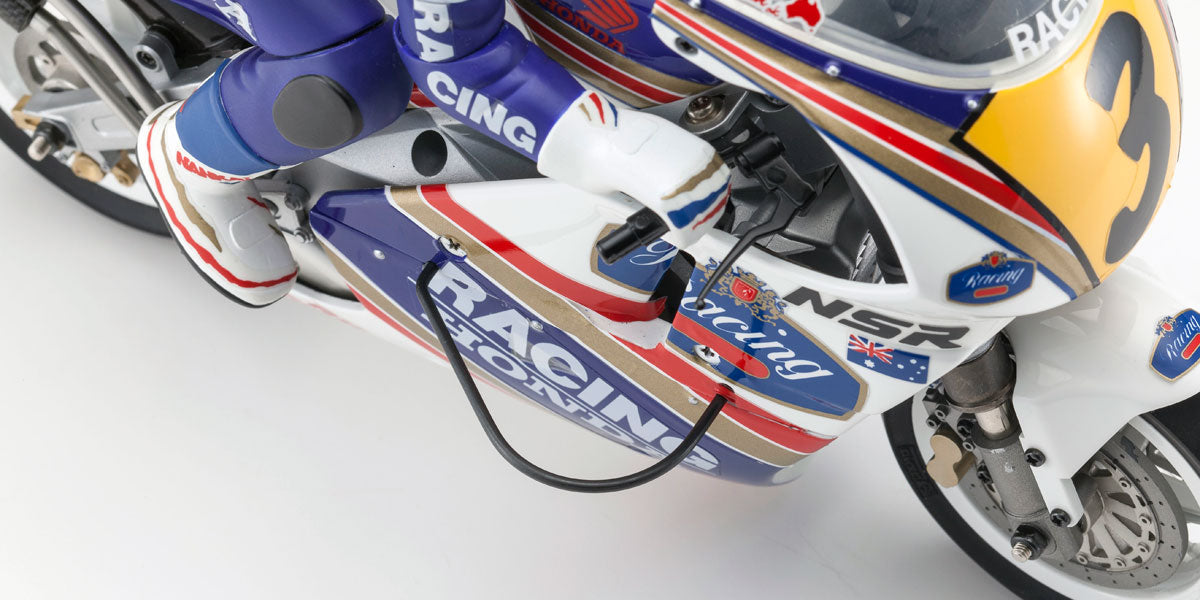

  • Fall prevention guards are effective for when standing starts are difficult and for when the bike leans too far while cornering.

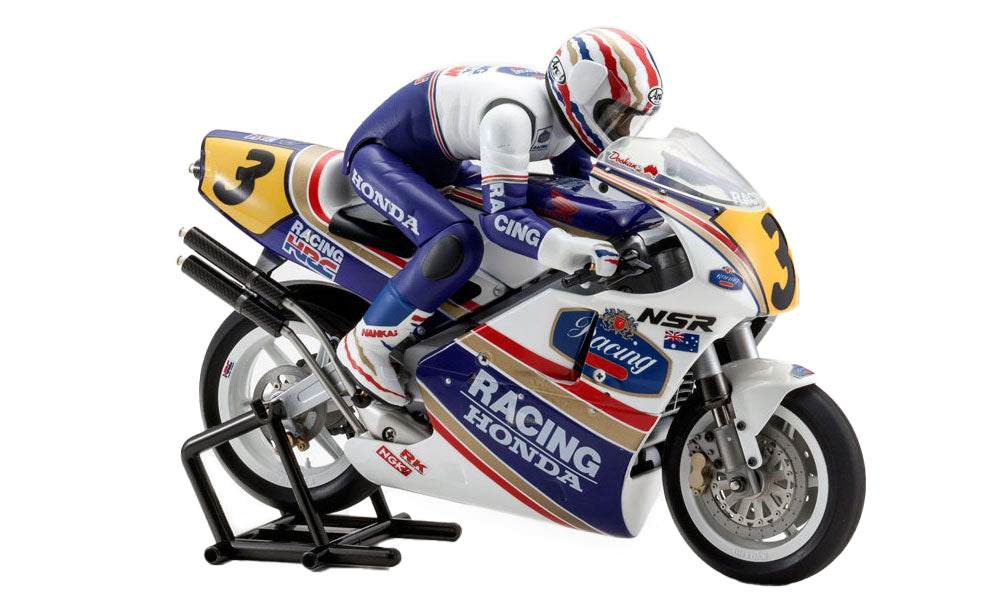

  • Includes unique bike stand that can be used to display the stunning scale appearance of the Hanging On Racer when it is not in use.
Specifications:
  • Length 270mm; Width 98mm; Height 190mm; Wheelbase 185mm
  • Tire(F/R) 78x18mm/86x23mm
  • Gear Ratio 13.80:1-19.30:1
  • Weight 750g (approx.)
  • Motor Le Mans DM20
