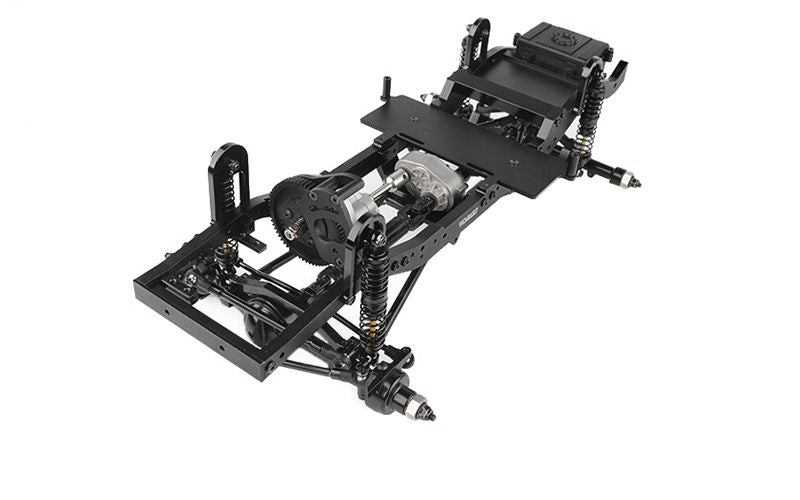

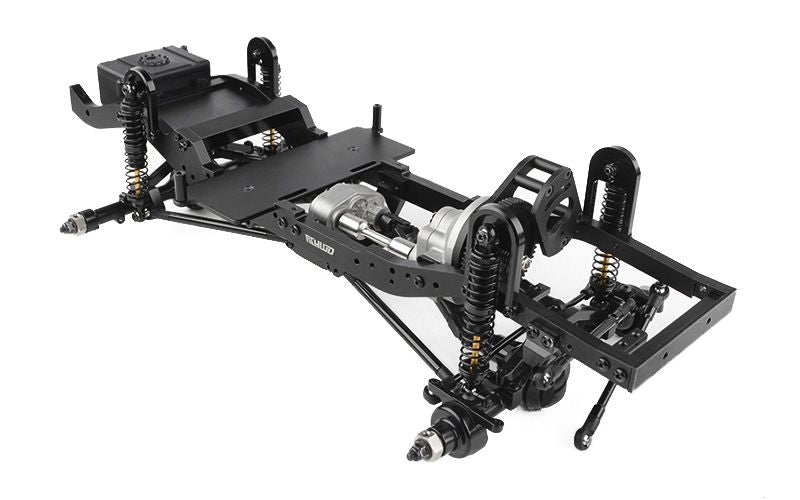

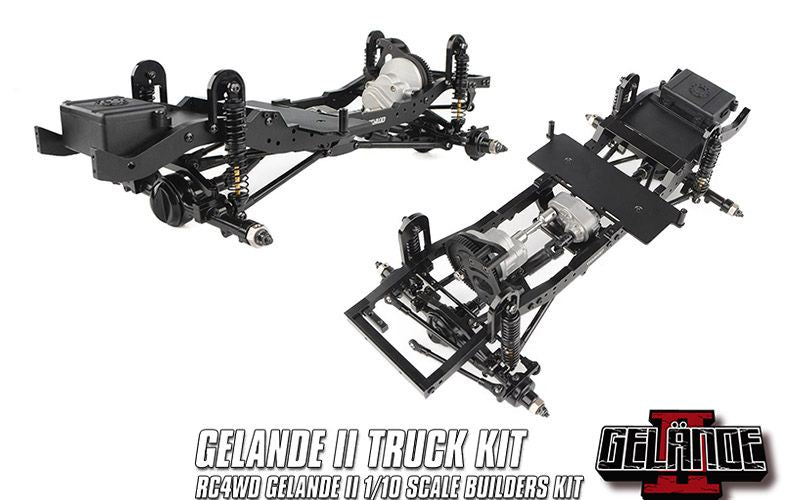

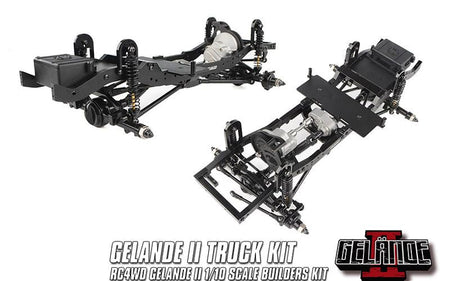

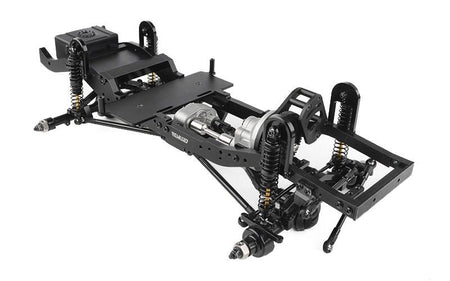

RC4WD Gelande II Truck 1/10 Scale Builders Kit ZK0071

Experience the versatility and innovative design of the Gelande II firsthand! Now featuring exciting upgrades, the Gelande II comes ready for challenging terrains. Put your off-road skills to the test and discover why the Gelande II is a fan favorite!

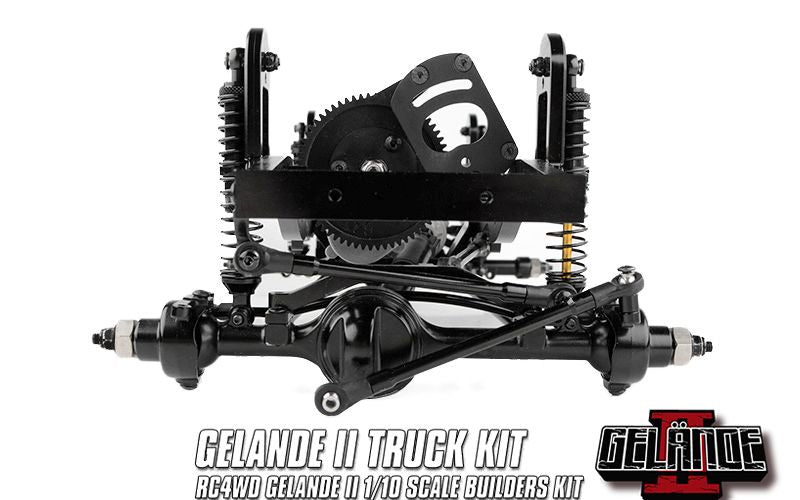

The Gelande II comes with a 4-link rear and 3-link Panhard rod suspension as a standard feature. The chassis-mounted servo is out of view for added realism.

The Gelande II platform is incredibly versatile, offering a wide range of styles and looks to bring any off-road enthusiast's vision to life. With countless customization options, RC4WD allows you to personalize your Gelande II without sacrificing performance. Whether you're building an emergency vehicle, expedition rig, scale replica, or hard-core rock crawler, this unit is ready to explore endless possibilities!

This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.

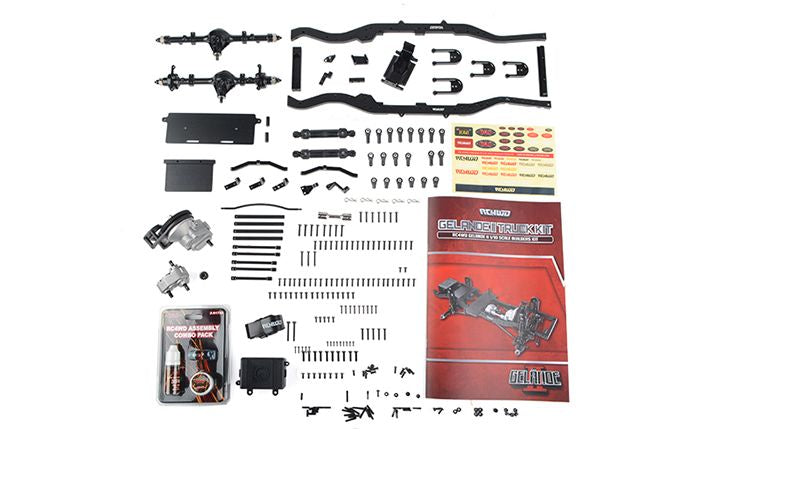

Includes:

• 1x RC4WD Gelande II Truck 1/10 Scale Builders Kit

Required to Complete (Truck & Kit):

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Required to Complete (Electronics):

• Motor (35t, 45t, or 55t)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Suggested Bodies:

• RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
• RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)

Features:

• Realistic Billet Aluminum Ladder Frame Chassis
• R3 Single-Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Metal Drive Coupling for Gelande II
• Yota II Ultimate Scale Cast Axle V2 (XVD)
• Dual Spring 80mm Scale Black Shocks (Ver 3) (X-Ring)
• Aluminum Shock Hoops for Gelande II Chassis
• Fuel Cell Radio Box

Specs:

• Hammer Transfer Case: Ratio: 1.47:1; Gears: Wide .8 Mod Hardened Steel Gears; Features: 8 Bearings, Cast Casing, Hardened Gears
• R3 Scale Single Speed Transmission: Ratios: Pinion/Spur 14/64 = 1:4.57; Internal Ratio: 1.78:1; Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
• Yota II Ultimate Scale Cast Axles: Ratio: 15/40 = 2.67:1; Width at Hex: 178.2mm
• Gelande II Chassis Set: Smooth Anodized Black Finish Integrated Notches for Cross Braces
• Drive Shafts: High Quality Plastic Material Durable Steel Yokes
• Gelande II 1/10 Scale Builders Kit Dimensions: Wheelbase: 275mm (10.8"); Length: 440mm (17.3"); Width: 220mm (8.7"); Height: 140mm (5.5"); Ground Clearance: 50mm (1.97"); Final Drive Ratios: 31.9:1

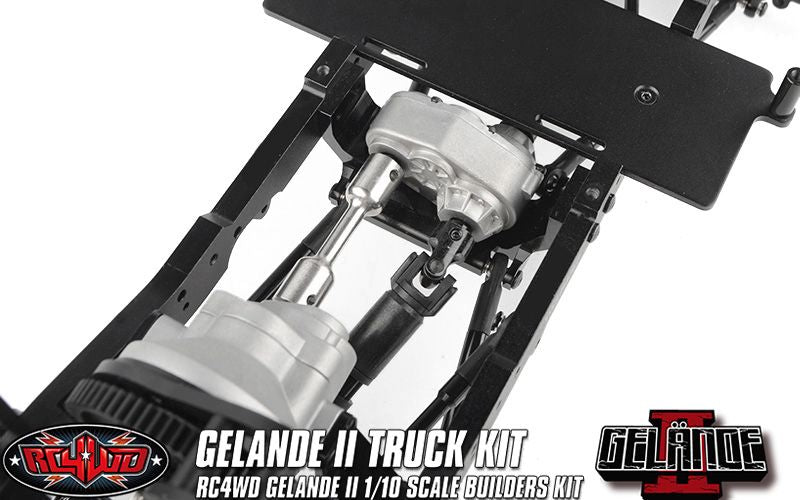

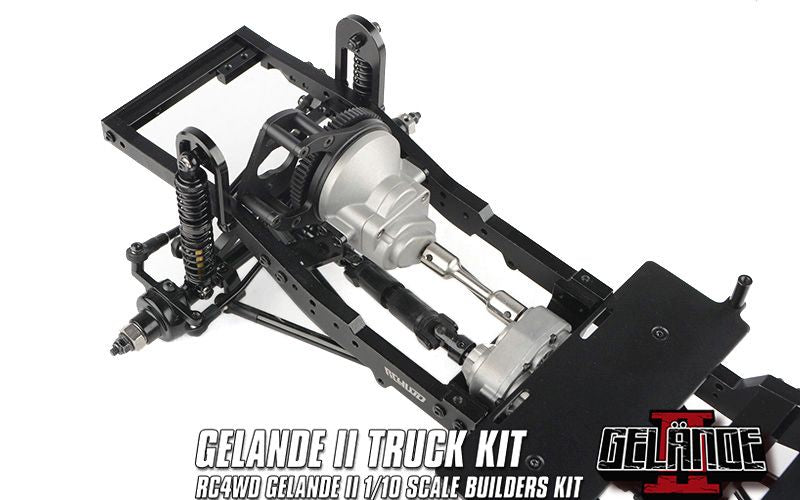

• DRIVETRAIN: The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness. The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability. Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day. The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axle V2 (Front/Rear) set the standard for scale realism, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin. The driveshafts found on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

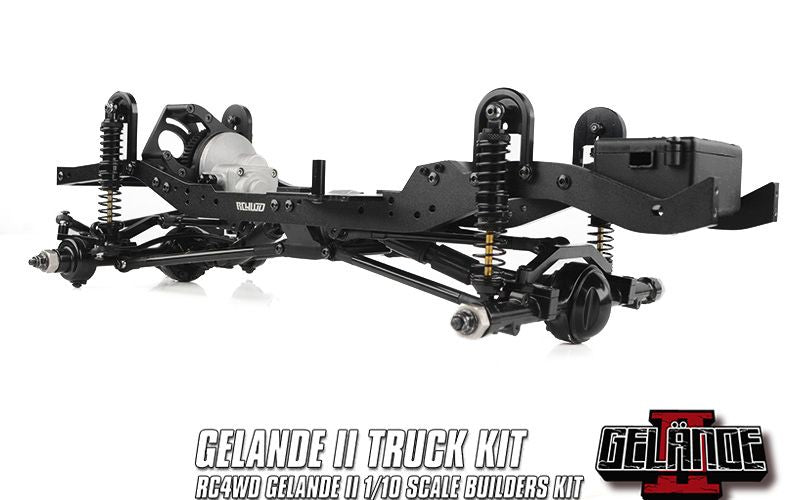

• SUSPENSION: The Gelande II Chassis is a machined billet aluminum ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength. The Gelande II includes a set of new RC4WD Dual Spring Scale Black Shocks 80mm V3. With an all-new design, the shocks come with our new X-ring tech that provides multiple sealing points for superior protection against leaks and contamination, ensuring cleaner operation, longer performance life, and reliability! The Gelande II Chassis Set is CNC machined with a smooth anodized black finish and integrated grooves for cross-bracing, giving it more texture and stability. Dominate tough terrain with RC4WD Steering Links. Perform sharp turns and experience immediate responsiveness. Crafted from premium materials, these links deliver unmatched durability and control. This Metal Drive Coupling is made of hardened steel, which provides sufficient durability, extending the lifespan of your drivetrain and withstanding the stresses of high-torque.

Replacement Parts:

• RC4WD Yota II Ultimate Scale Cast Axle V2 (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Gelande 2 Chassis Set (Z-C0040)
• RC4WD Dual Spring Scale Black Shocks 80mm V3 (Z-D0041)
• RC4WD 120mm Hardened Steering Link (FOA) (Z-S0194)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• Heavy Duty Nylon Strap Lock (5) (Z-S0552)
• Fuel Cell Radio Box (Z-S0592)
• 2mm Black Spacer with M3 Hole (10) (Z-S0600)
• Servo Mounts for Gelande 2 Chassis (Z-S0791)
• Battery Plate for Gelande 2 (Z-S0792)
• Gelande II Electronics Deck (Z-S0793)
• Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
• Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
• R3 Single Speed Transmission Mounts (Z-S0802)
• Metal Drive Coupling for Gelande 2 (Z-S0803)
• M3 Driveshaft Screw Pin (5) (Z-S0804)
• 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
• 3mm Black Spacer with M3 Hole (10) (Z-S0806)
• 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
• 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
• 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
• 5mm Black Spacer with M3 Hole (10) (Z-S0821)
• RC4WD Plastic Punisher Shaft V2 (95mm - 100mm / 3.74" - 3.94") 5mm Hole (Z-S2019)
• Scrambler Offroad 1.9" Scale Tires (Z-T0144)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
• R3 Scale Single Speed Transmission (Z-U0028)

Notes:

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.
