Reefs RC

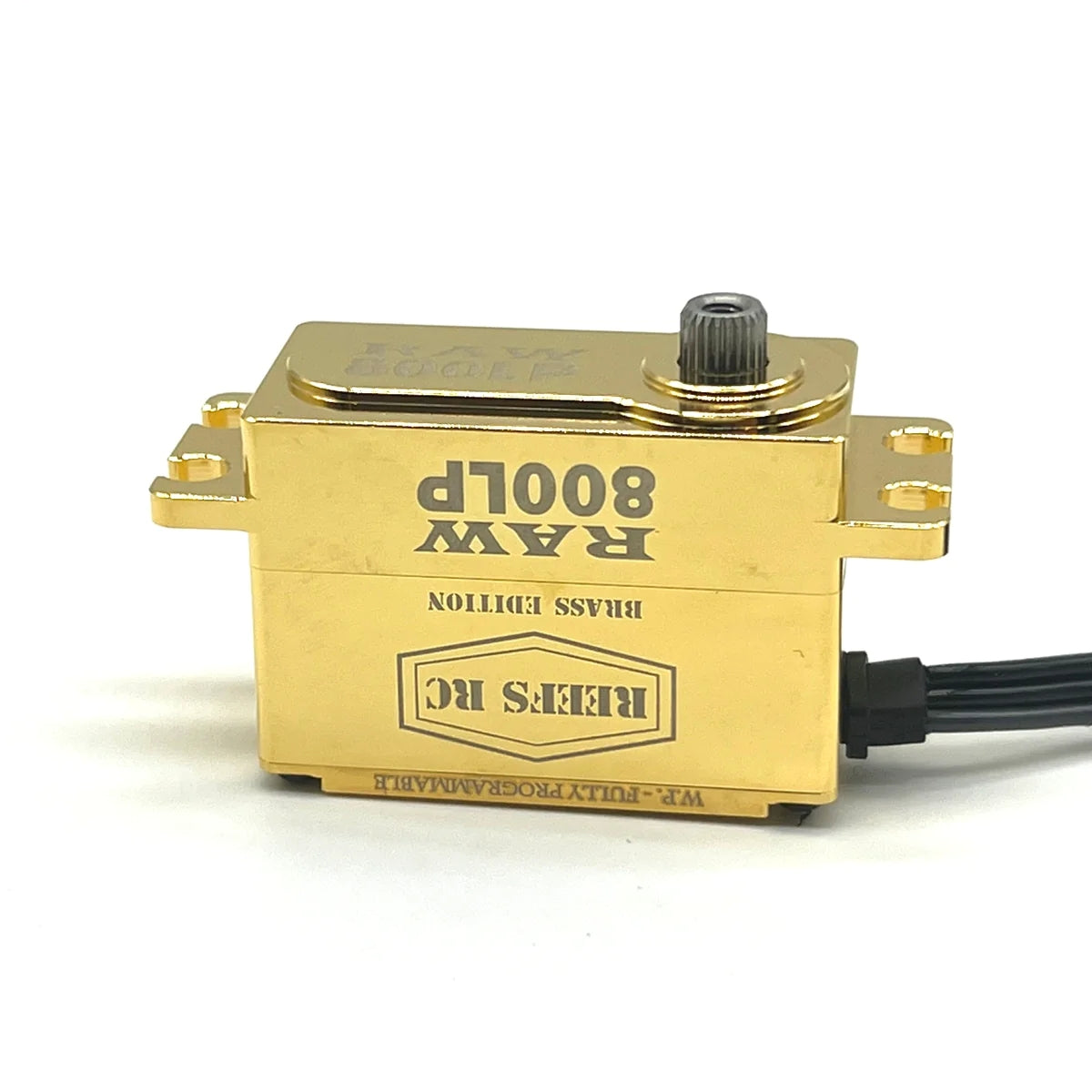

Reef's RC RAW800LP Servo Brass Edition Programmable REEFS160

In stock
SKU: SEHREEFS160
$199.99

Product details

  • Vendor Reefs RC
  • SKU SEHREEFS160
Description

Experience powerful and precise performance with Reef's RC RAW800LP Servo Brass Edition. Its programmable design, combined with the durable brass construction, allows for customizable and reliable use. Perfect for RC enthusiasts looking to take their experience to the next level with the REEFS160 model.

Note: BEC not required, but recommended for best performance.

Specifications:
  • Motor: 4 POLE - Brushless
  • Submarine Waterproof: 7 Point Seals
  • Positioning: Magnetic Angle Sensor
  • Voltage: 4.8V - 8.4V
  • Programmable: REEFS LINK required for Programming (Optional)
  • Gears: Steel Gears
  • Spline: 25T / Dead Band Width: 2 µ
  • Case: CNC Aluminum Casing
  • Bearing Type: 2 Ball Bearings
  • Weight: 2.3oz / 66gm
  • Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
  • Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
  • Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
  • Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
  • Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
