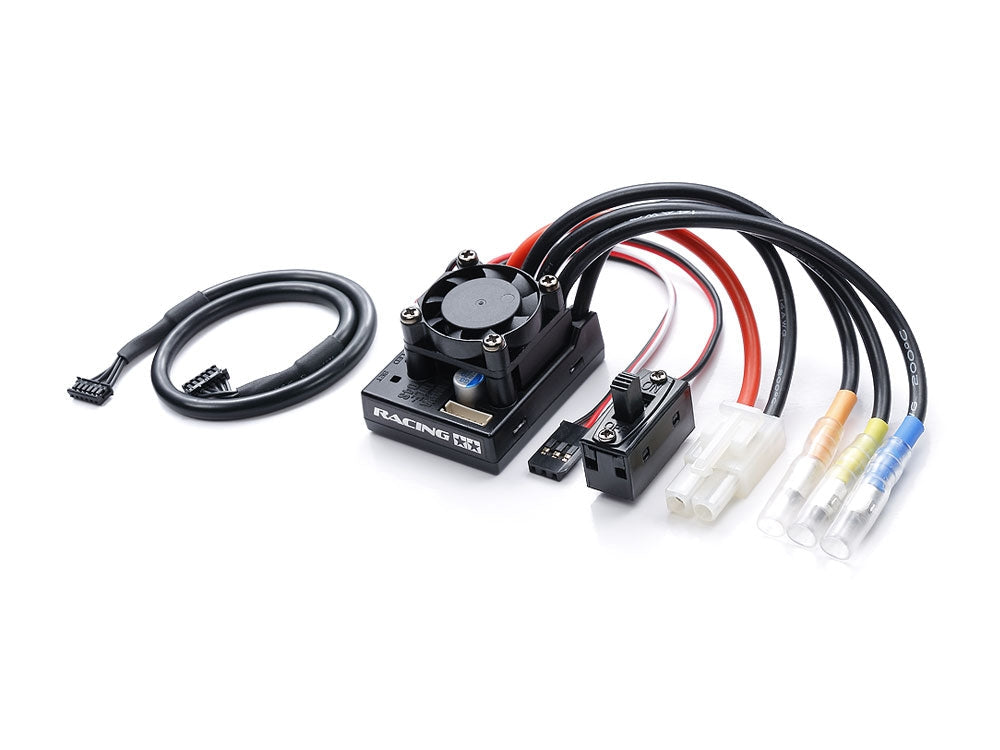

This ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5 turn and over, (Aftermarket brands 21.5 turn and over), and also brushed motors 23T and over. High point, neutral brake, and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC features two protection functions and a cooling fan.
Maximum continuous current: 75A
Input voltage: 6.6V - 7.2V
Dimensions: 41.5mm x 33.4mm x 27mm
Weight: 56g (including cables)
- Choose from 10 different settings for both neutral brake and brake.
- Features overheating and overload protection functions.
- Weight: 56g (including cables)
- Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
- Dimensions: 41.5 x 33.4 x 27mm
Basic specifications:
Continuous maximum current 75A
Output: 100% forward / 50% reverse
Input voltage 6.6-7.2V
Size 41.5 x 33.4 x 27mm
Weight 56g (including cords)
Cooling fan is standard equipment.
Maximum continuous current: 75A
Input voltage: 6.6V - 7.2V
Dimensions: 41.5mm x 33.4mm x 27mm
Weight: 56g (including cables)
- Choose from 10 different settings for both neutral brake and brake.
- Features overheating and overload protection functions.
- Weight: 56g (including cables)
- Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
- Dimensions: 41.5 x 33.4 x 27mm
Basic specifications:
Continuous maximum current 75A
Output: 100% forward / 50% reverse
Input voltage 6.6-7.2V
Size 41.5 x 33.4 x 27mm
Weight 56g (including cords)
Cooling fan is standard equipment.
