Tamiya 1/14 Ford Aeromax 6x4 Electric Semi Truck Kit

This massive American rig has joined Tamiya's 1/14 scale tractor truck stable. Tamiya's model of the Ford Aeromax tractor truck boasts both large scale realism and authentic functions. Servo-shifted 3-speed transmission is mounted at the front of the aluminum ladder frame.

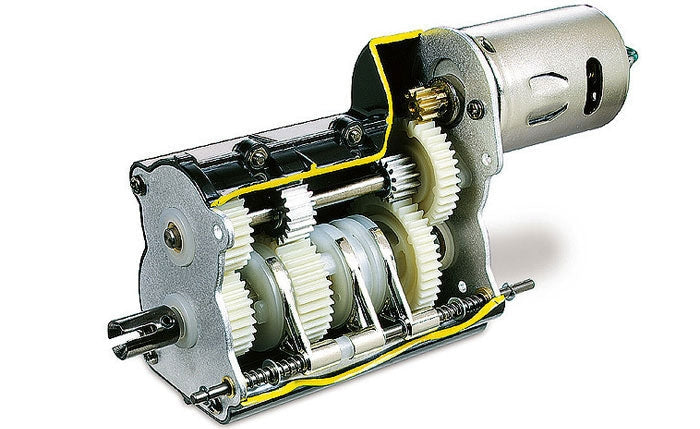

3Speed Shifting
Tamiya Semi trucks and Highlifts use 3speed transmissions for more maneuverability and true scale realism. Whether you're hauling a big load or climbing some rough terrain, the ability to shift into low gear can make the difference. High speed runs are no problem once you kick it into 3rd gear, when its time to move out!

The 3Speed requires a 4-channel stick type radio for full function. If you're going to outfit your vehicle with one of Tamiya's multifunction units (MFU), you will need to choose an analog radio. Shifting into gear is extremely easy once your transmission is adjusted correctly.

Features:

• 3-Speed Transmission
• Solid Rear Axles
• Rubber Mud Flaps

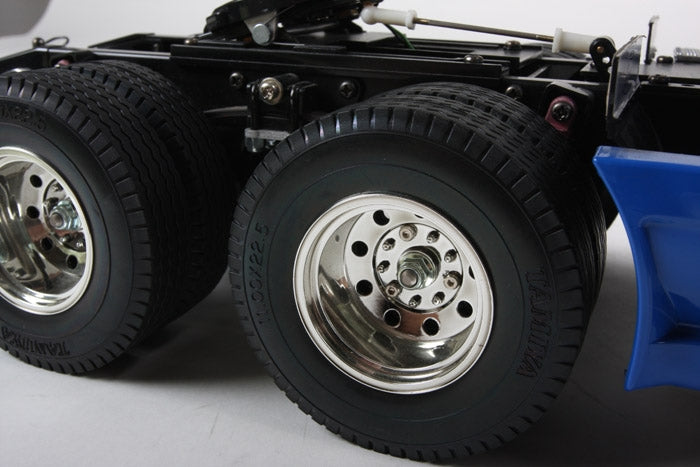

• Dual Rear Rubber Tires
• Chrome Wheels
• Realistic Scale Details
• Working Leaf-Spring Suspension
• Friction Dampers
• Rubber Tires
• Metal Ladder Frame Chassis
• 540 Motor Included


Specifications:
Scale: 1/14
Construction type: assembly kit
Terrain use: on-road
Drive-train: 2-axle semi
Drive type: 3-speed
Drive line: solid axle
Differential type: gear
Suspension: leaf spring
Steering mechanism: bell-crank
Shock damper: friction damper
Shock damper material: aluminum
Tire type: rubber
Tire tread: radial
Body material: ABS Plastic
Chassis material: aluminum
Electronic Speed Control (ESC): not included
LED Light buckets: yes
LED lights: no
Motor: 540-brushed type
Bearings: metal and plastic bushings
Adjustable camber: fixed
Adjustable toe angles: fixed
Adjustable ground clearance: fixed
Adjustable gear ratio: fixed
Adjustable wheelbase: fixed
Adjustable track width: fixed
Adjustable shock angle: fixed
Special feature 1: Length: 24.17 inches (614mm) Width: 7.48 inches (190mm)
Special feature 2: Wheelbase: 17.60 inches (447mm)
Special feature 3: Tread F/R: 156/138mm
Special feature 4: Tire Width: F/R both 22mm
Special feature 5: Weight: 6.39 lbs. (2900g)
Special feature 6: Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Special feature 7: Wheels & Tires: Chrome/Radial
Requires A: 7.2 battery & charger
Requires B: 4-channel radio gear
Requires C: electronic speed control
Requires D: TS plastic model paint

Needed To Complete:

• 4-Channel Stick Radio System (to utilize 3Speed)
• Forward/Reverse ESC

• (2) Servos (1x steering, 1x 3Speed)

• 7.2V 6-Cell Battery

• Compatible Battery Charger

• Glue
• TS Spray Paint (for plastics)
• (8) "AA" Batteries

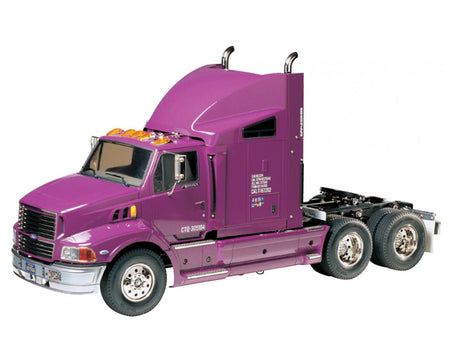

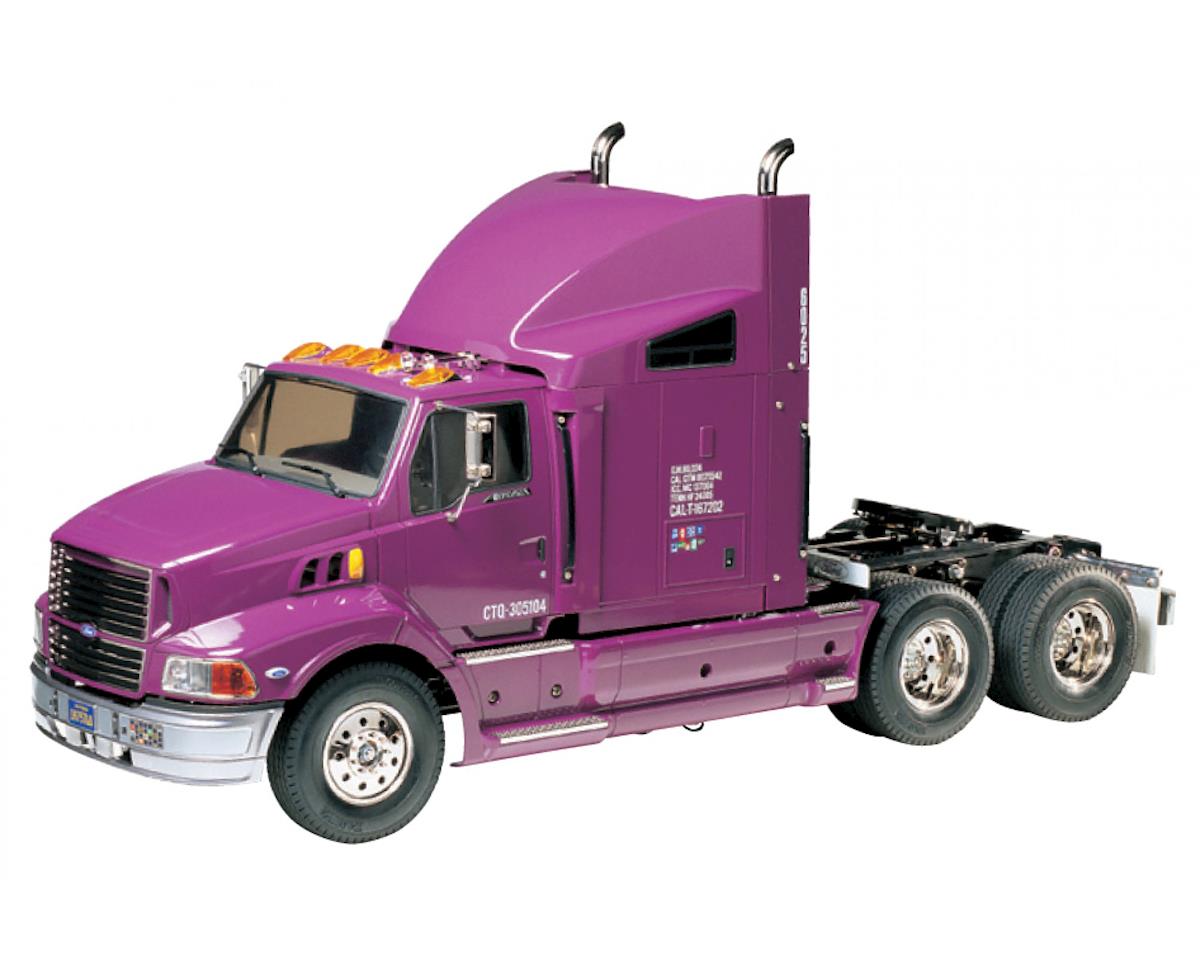

NOTE: Completed and painted truck shown for illustrative purposes only and is not included. This is an unassembled, unpainted kit.
