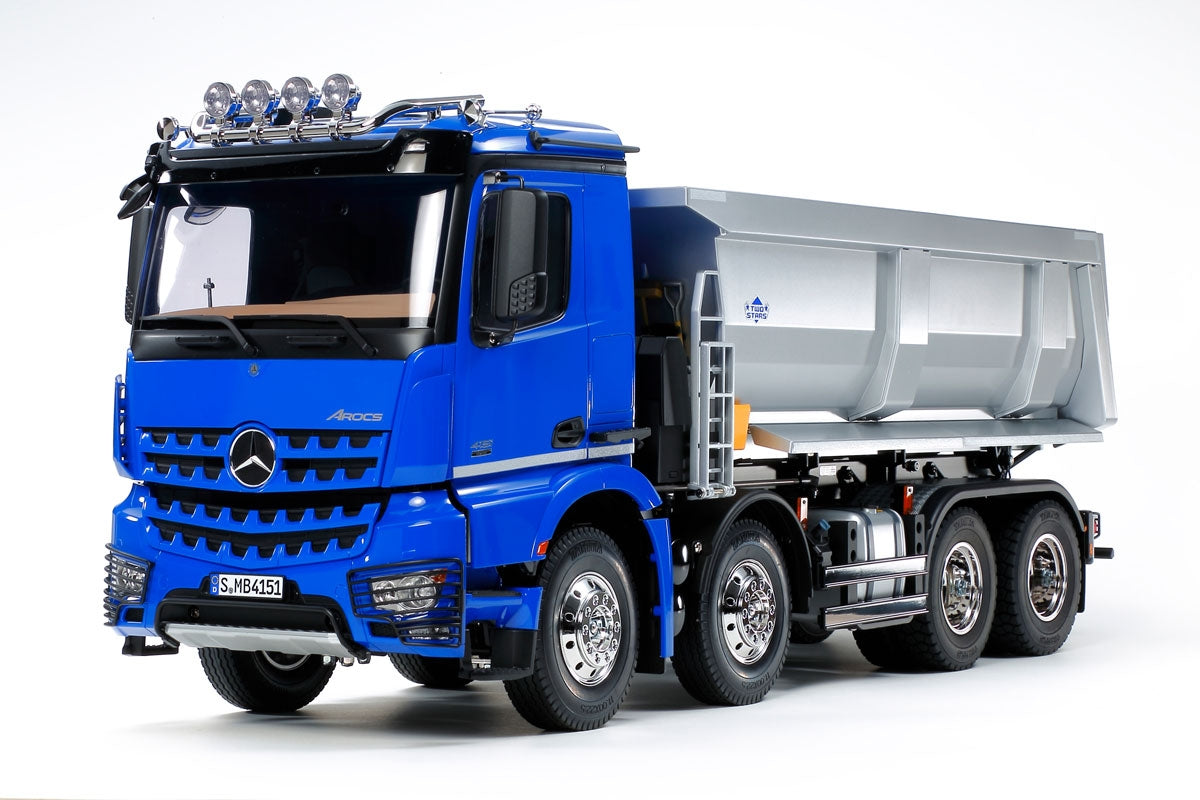

Tamiya 1/14 RC Mercedes Benz Arocs 4151 8x4 Tipper Truck Kit

The Tamiya 1/14 R/C Mercedes-Benz Arocs 4151 8x4 Tipper Truck recreates the Mercedes-Benz Arocs dump truck in the 8x4 configuration. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set (TAM56545).

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction shock-dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A separately sold 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations (both sold separately).

NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.

• 1/14 scale R/C model assembly kit

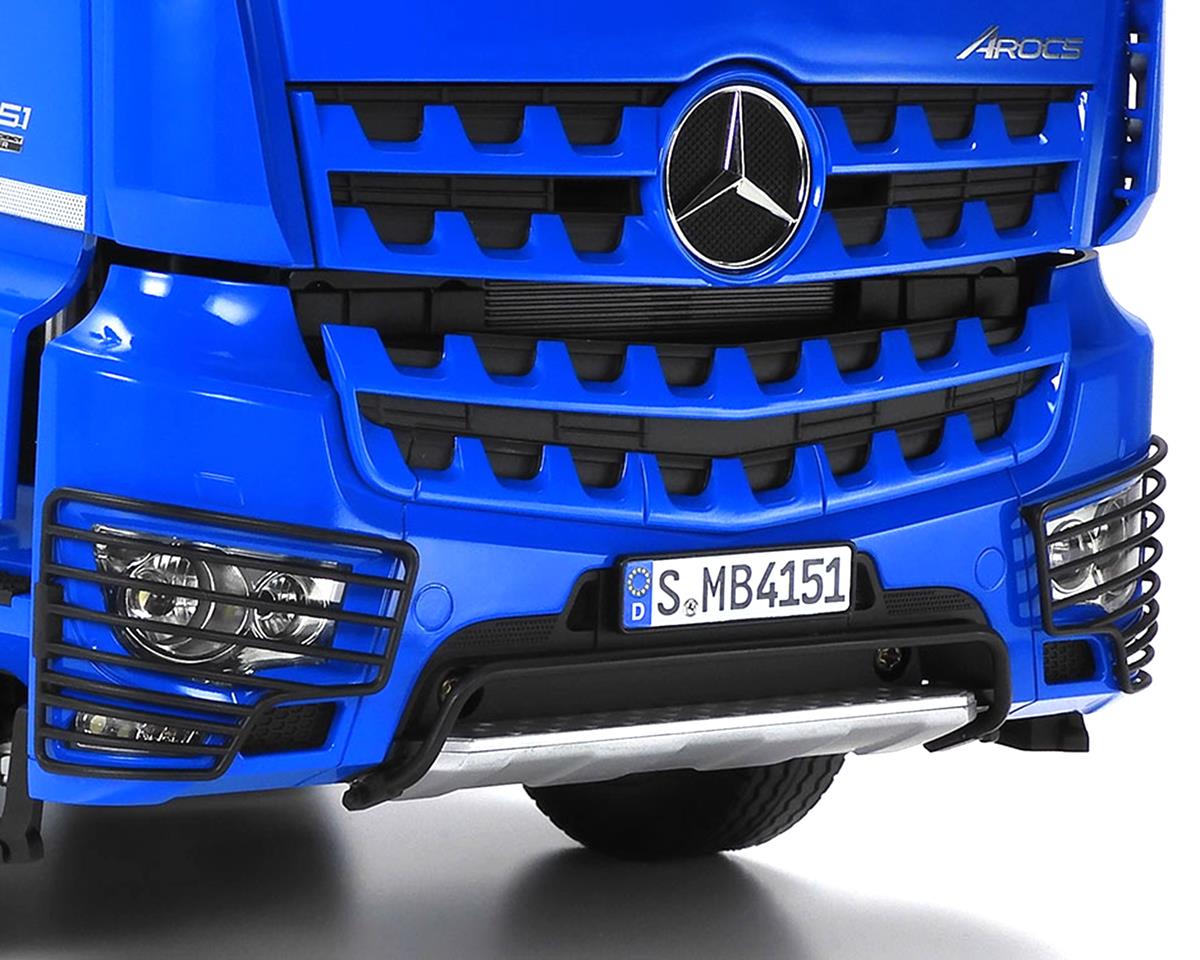

• The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details

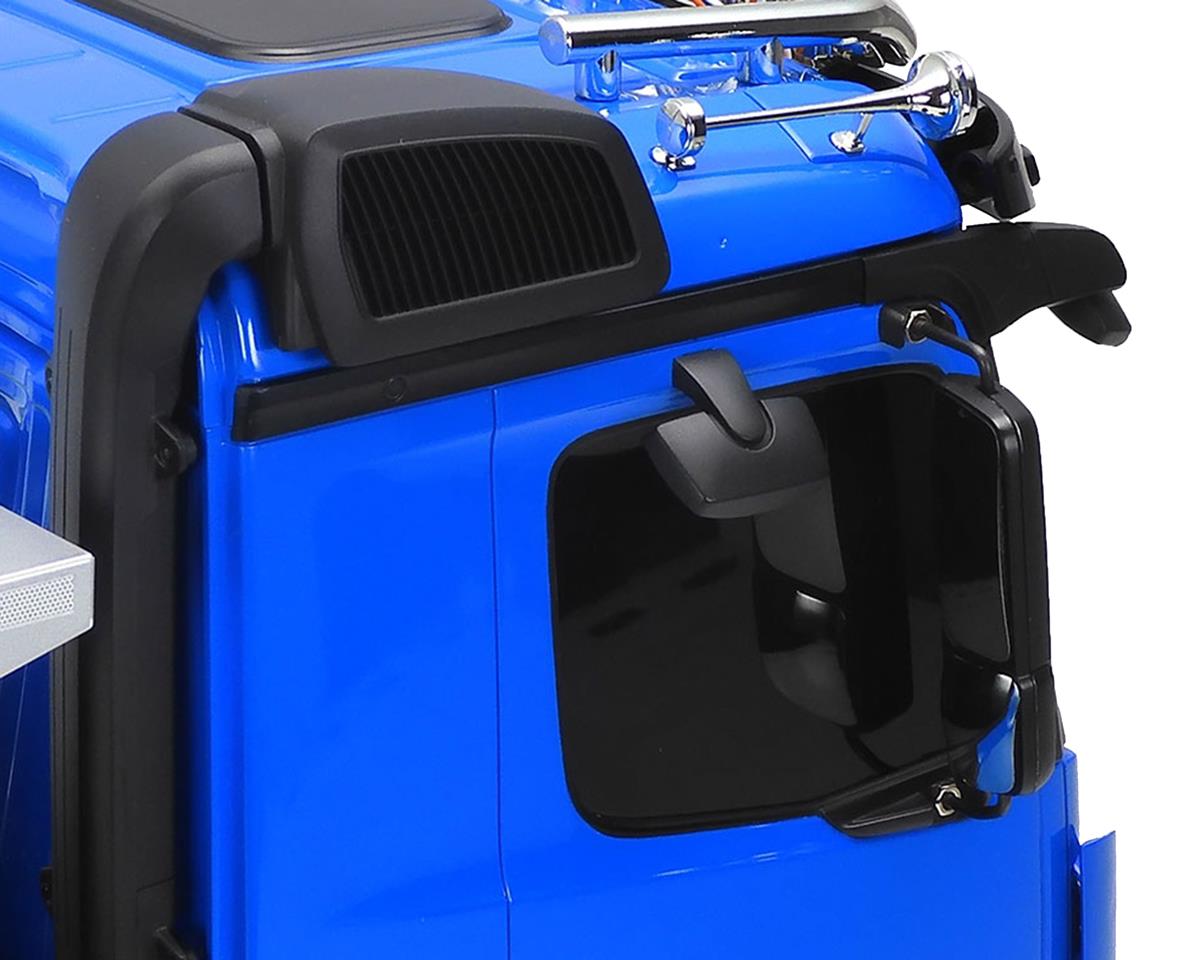

• Separate parts recreate side mirrors and visor, etc
• Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles
• The Tamiya 4-axle chassis has a tough ladder frame with aluminum side channels and plastic cross members

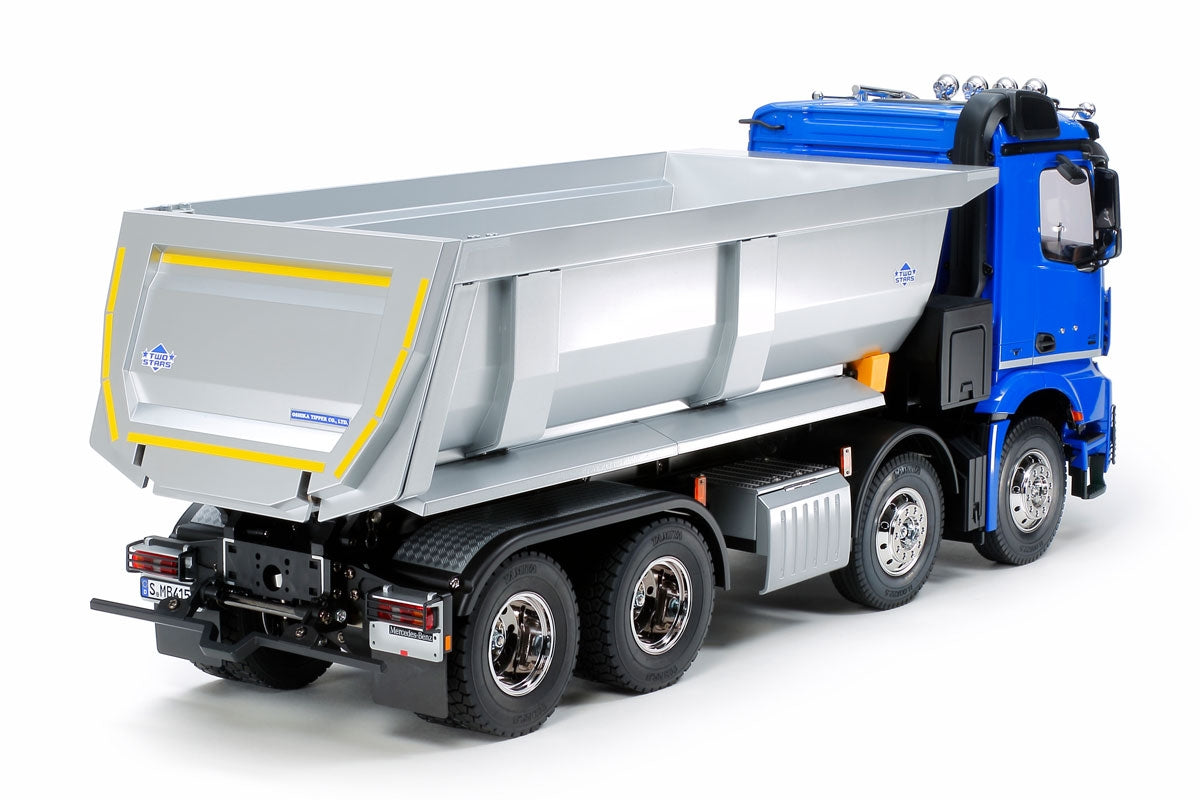

• Features a brand-new truck bed section comprised of metal subframe for superb durability
• Install the optional Actuator Set (TAM56545 - not included) for realistic truck bed motion
• TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed

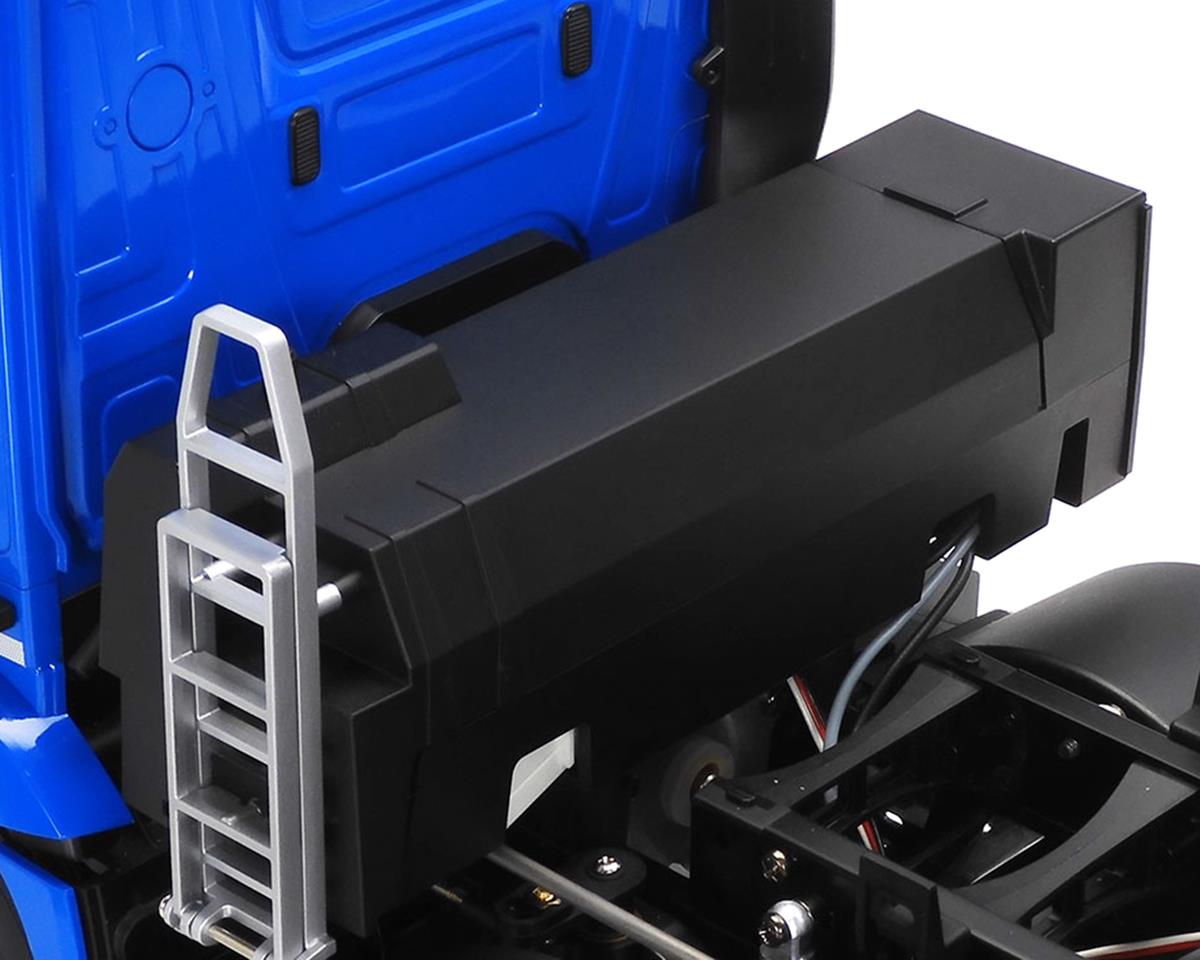

• The battery case is located over the second axle, which allows access even when there are loads in the bed
• The roof features a depiction of light pods on the visor, which can be fitted with LEDs for a realistic finish
• 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter
• Metal leaf spring dampers with built-in coil springs provide durable suspension
• Use with separately-sold MFC-03 (TAM56523) or MFC-01 (TAM56511) for realistic lights and sounds

Length: 667mm

Width: 196mm

Height: 268mm

Adjustable Gear Ratio: 3-speed transmission

Bearings: Metal and Plastic Bushings

Body Material: ABS Plastic

Body Stickers: Included

Chassis Material: Aluminum and ABS plastic

Chassis Type: Semi-Truck

Construction Type: Assembly Kit

Differential Type: Gear

Electronic Speed Control: Sold Separately

Led Lights: Not Included, but sold separately

Motor: 540-brushed type

Scale: 1/14

Shock Damper: Friction damper

Suspension: Leaf Spring

Terrain Use: On-Road

• 4-Channel Radio (Tamiya Attack)
• 2 servos
• ESC
• 7.2volt battery with compatible charger
• Tamiya TS & Acrylic-Lacquer Bottle Paints
