Tamiya 58681 RC 1/10 Formula E Gen2 Racing Car Kit TC-01 Championship

Only 2 left
SKU: TAM58681
$292.60

Product details

  • Vendor Tamiya
  • SKU TAM58681
Description

Seriously Low Profile

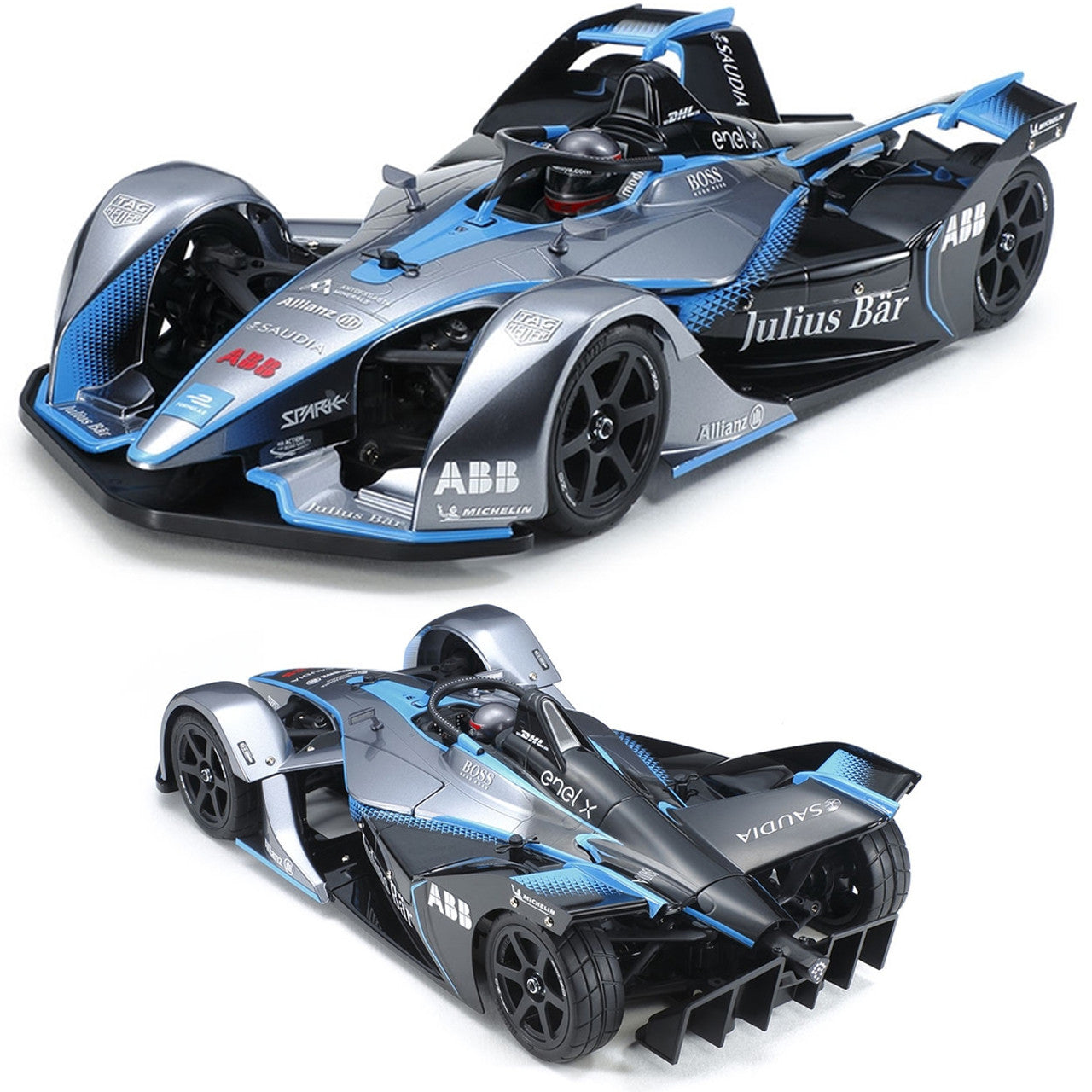

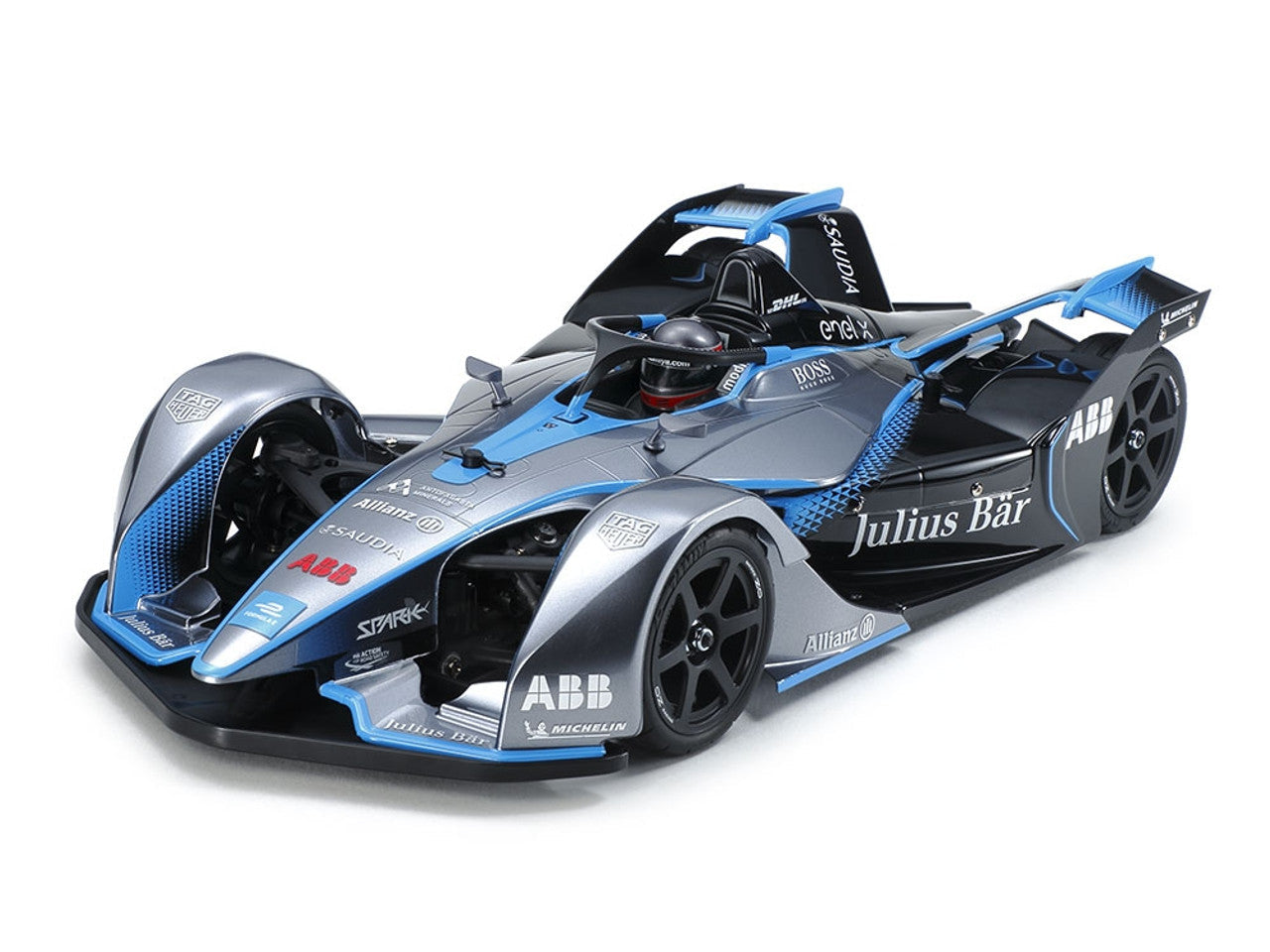

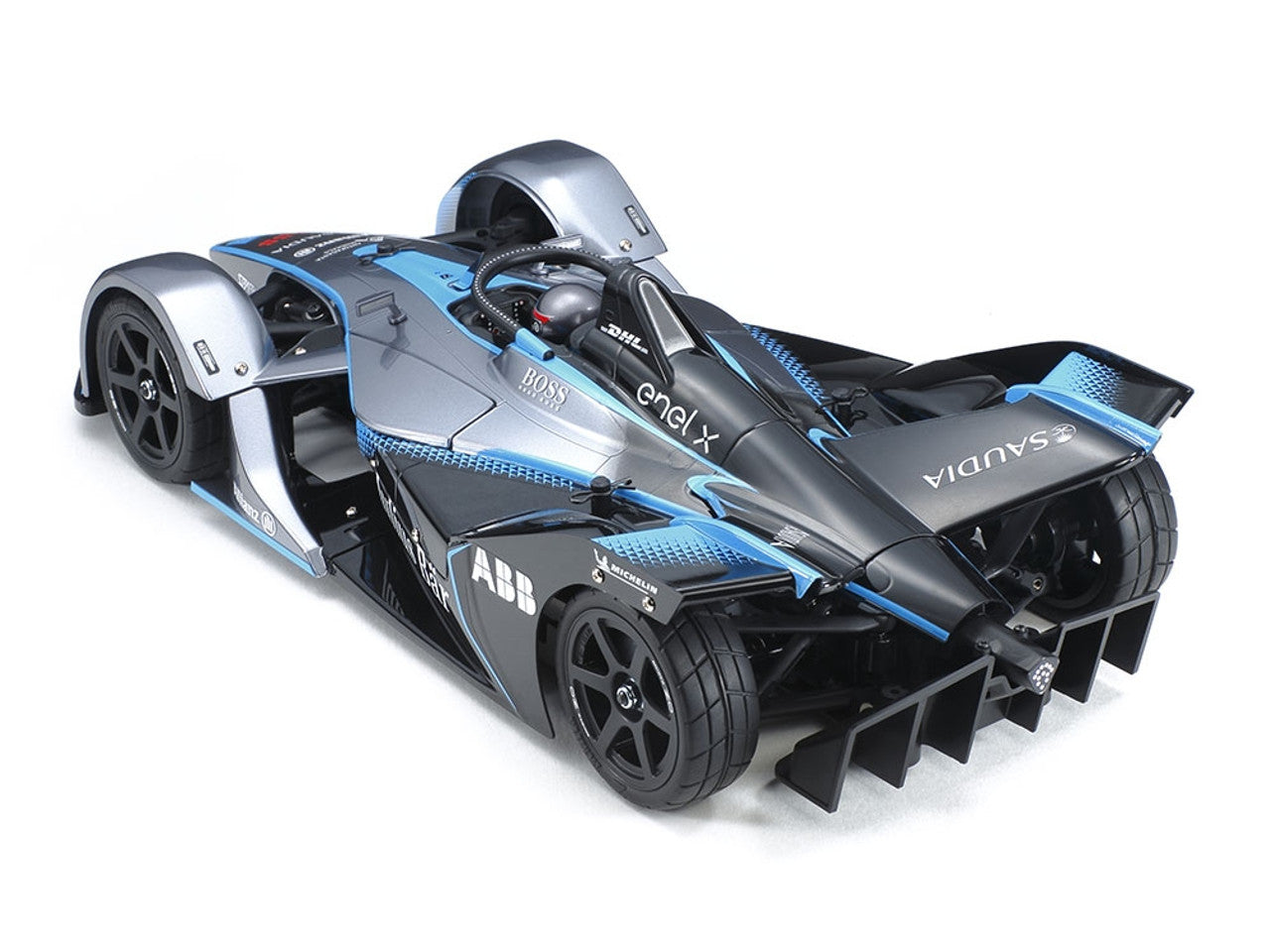

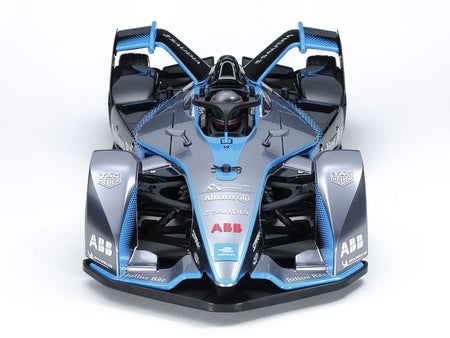

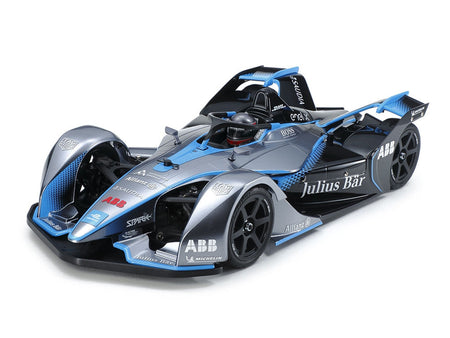

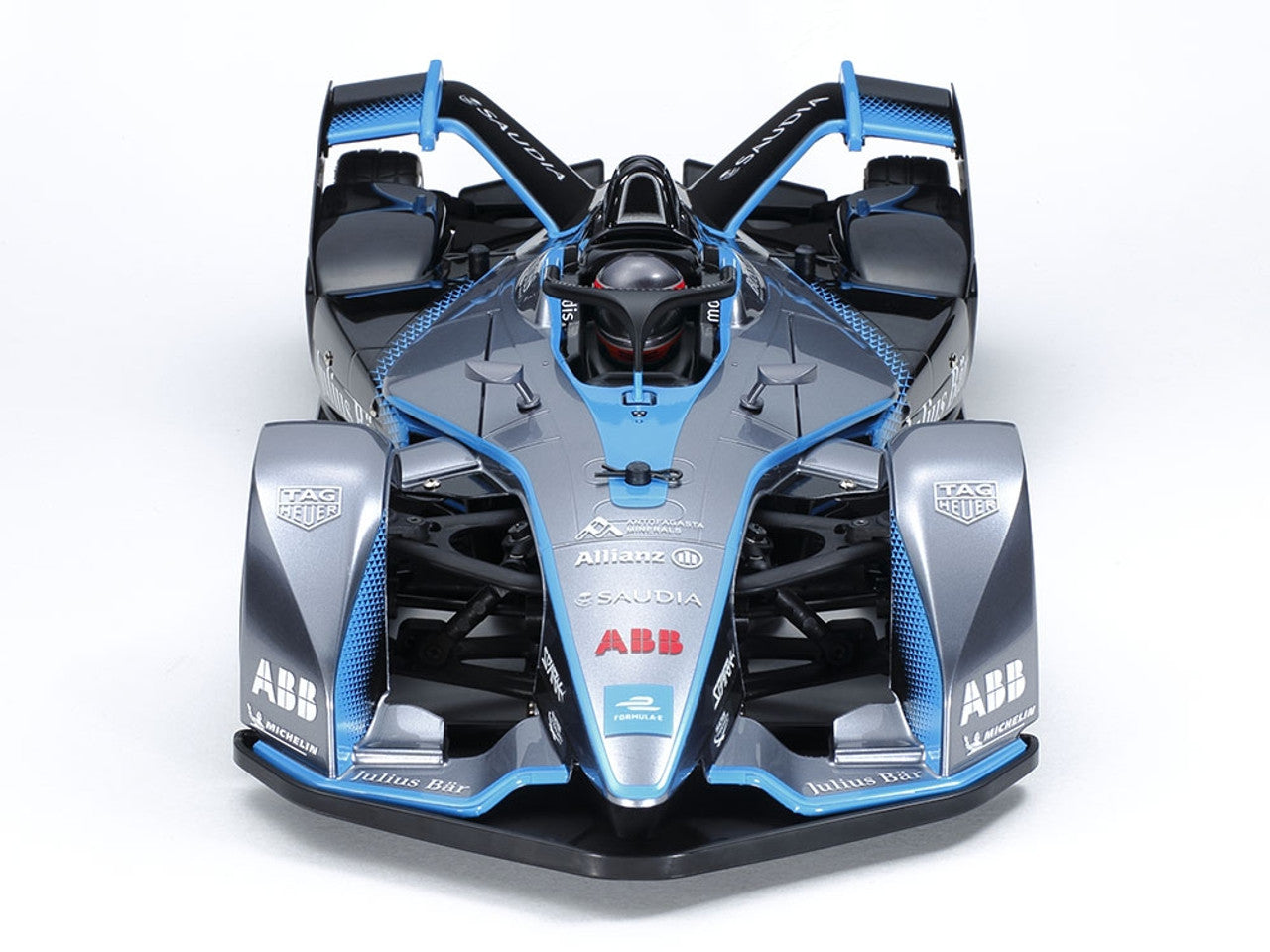

The Tamiya TC-01 Formula E Gen2 Car Championship Livery Chassis Kit celebrates the GEN2 car seen in the 2018 Formula E championship. The sleek, high-tech body with arch covered wheels is recreated in polycarbonate. Halo, mirrors and rear diffuser/bumper are molded ABS components. Markings are included to recreate the Championship Livery car, and the model is based upon the shaft-driven 4WD TC-01 chassis.

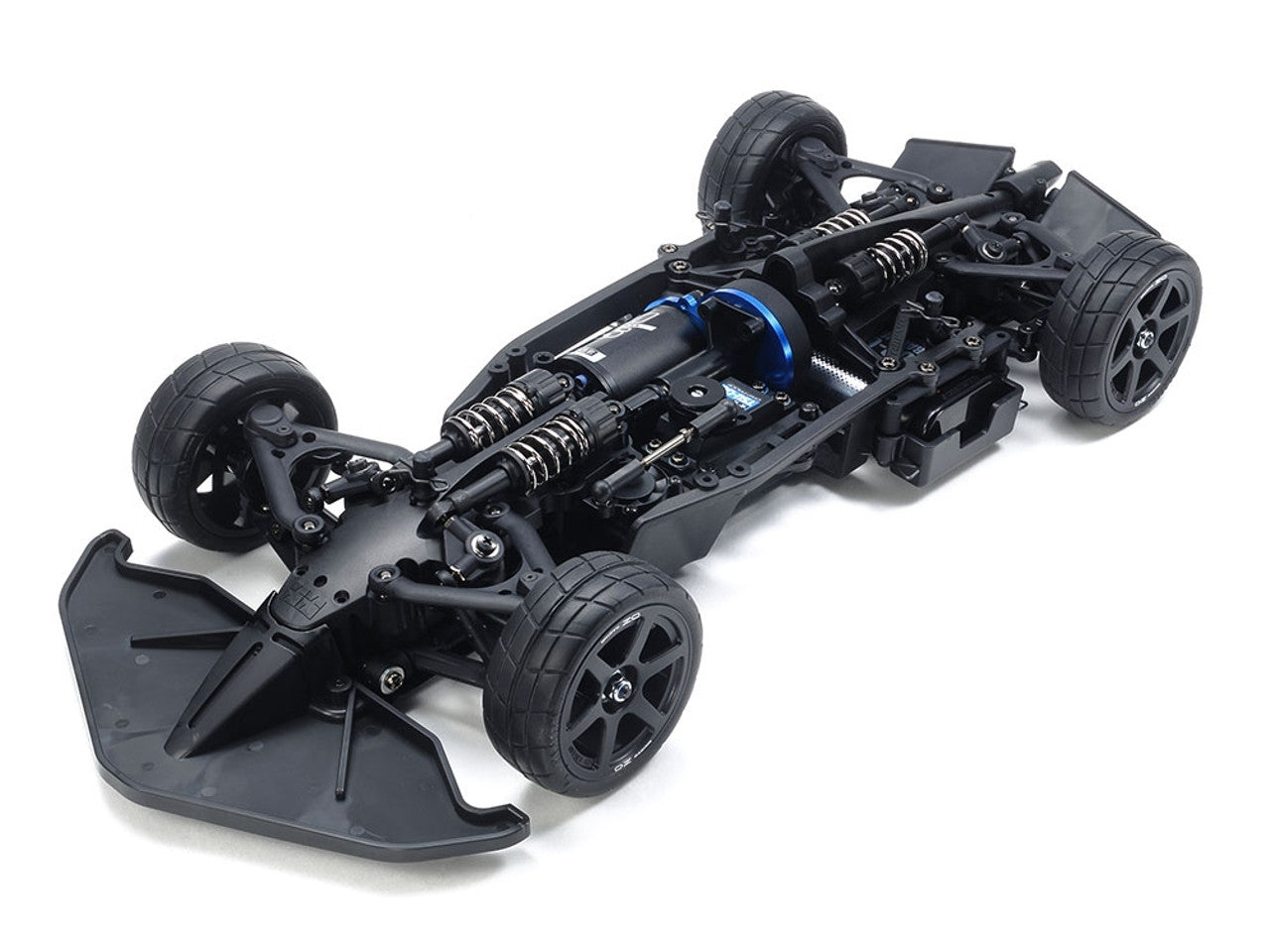

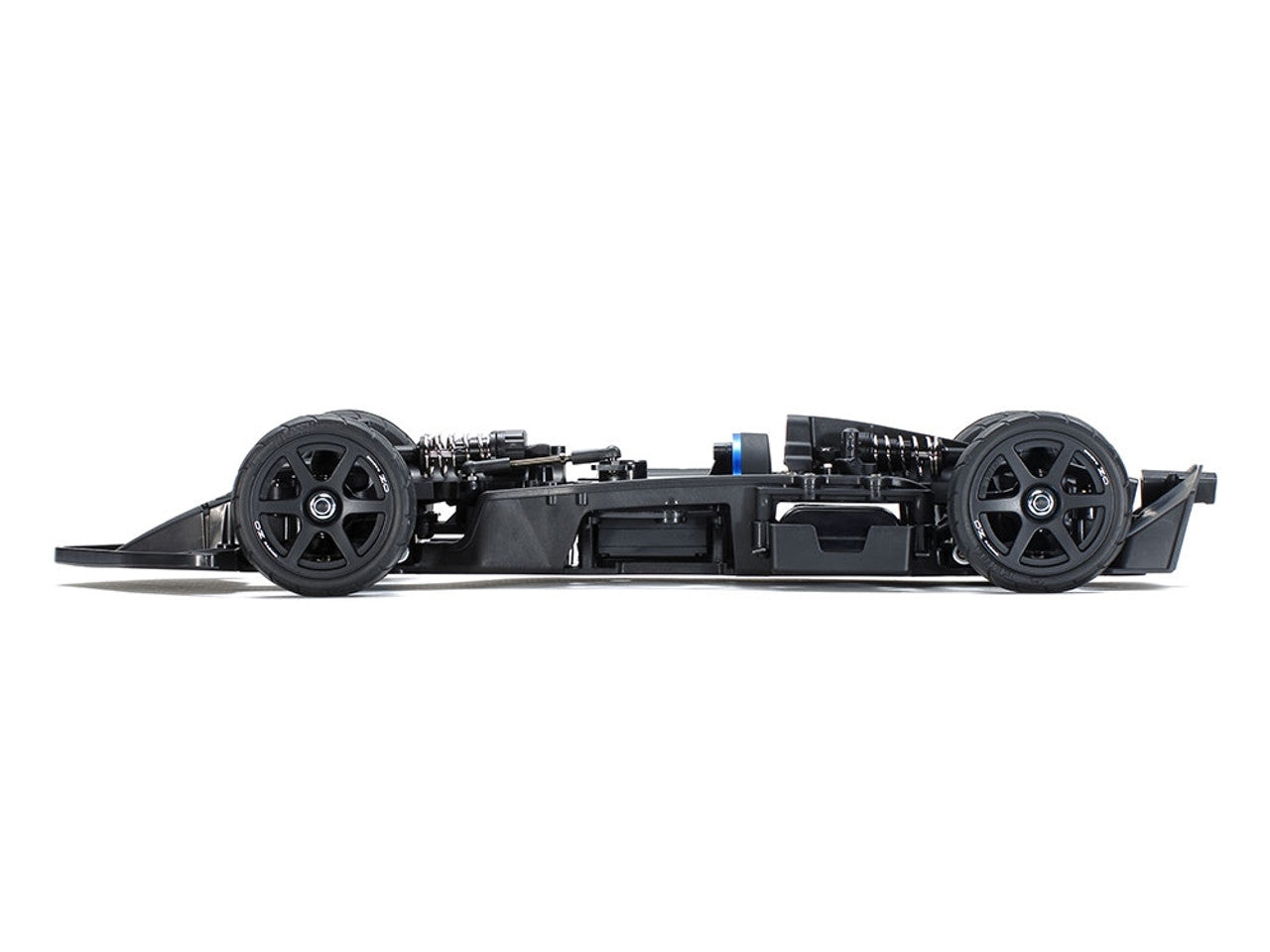

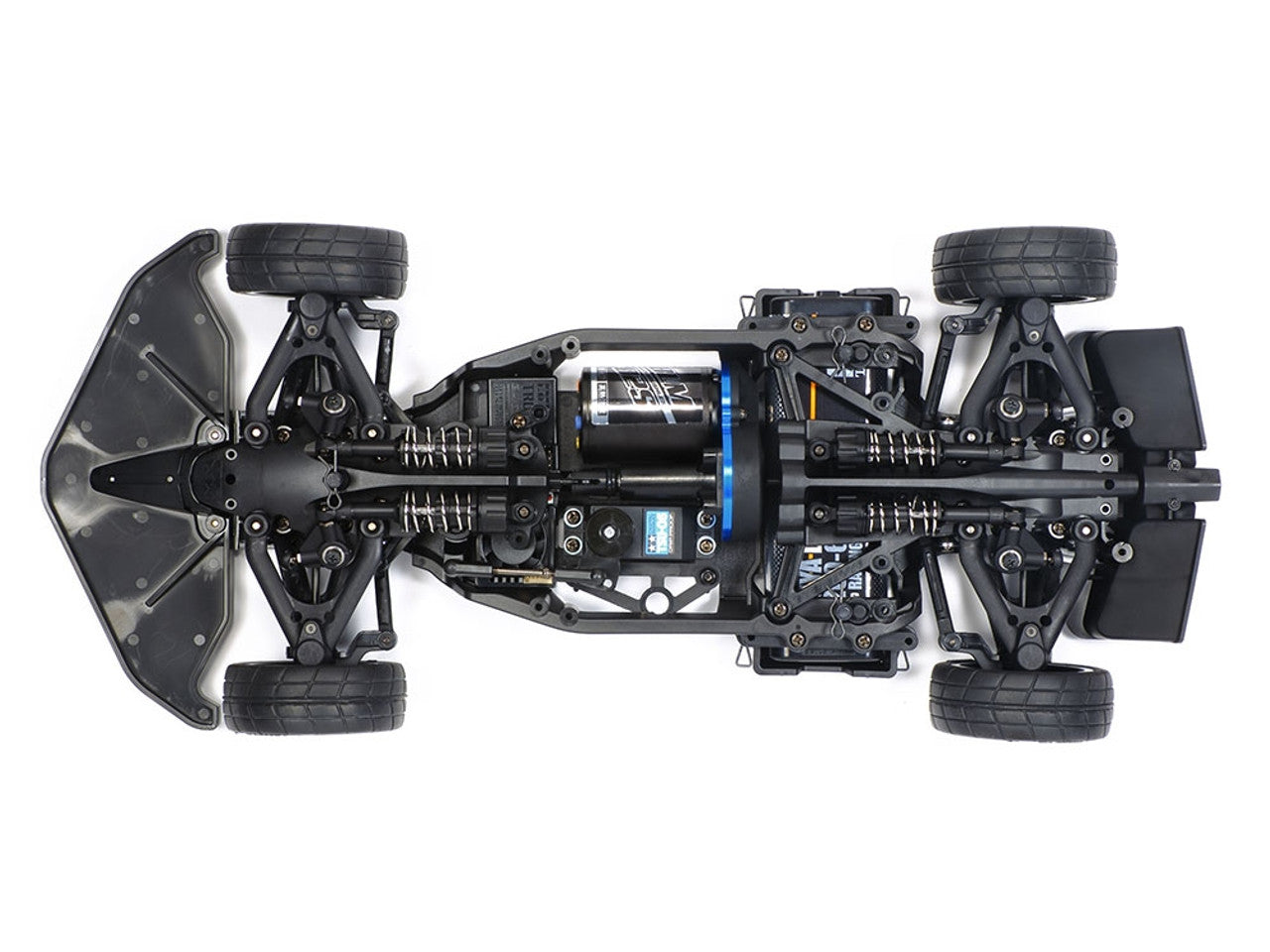

This durable composite monocoque-frame chassis provides shaft driven 4WD from a central motor via front and rear propeller shafts, with oil filled gear differentials. 4-wheel independent double wishbone suspension employs long arms, plus inboard setups front and rear with oil shock-dampers actuated by push rods and rocker arms to allow the use of low-profile bodies. Adjust spacer width to easily alter camber, skid and toe angle settings. Both suspension arms and uprights are identical left, right, front and rear, for more efficient maintenance and pit work.

Features:
  • 1/10 scale RC assembly kit
  • Composite Monocoque-Frame Chassis
  • Shaft-Driven 4WD
  • Front & Rear Oil-Filled Gear Differentials
  • 3-Piece Steering Tie-Rod
  • Front & Rear Inboard 4-Wheel Independent Double Wishbone Suspension
  • CVA Oil Dampers (Front & Rear)
  • Use of different spacers allows alteration of camber, caster and toe angles for maximum freedom of setup
  • Change bumpers and body mounts to switch between formula and touring car layouts
  • The shaft-driven 4WD layout uses TB-05 design oil-filled gear differentials for smooth, efficient drive performance.
  • Polycarbonate body
  • Halo and mirror components are molded in white ABS
  • In addition to the unique Formula E Gen2 body, this chassis is compatible with standard touring car measurement bodies
  • Stickers are included to recreate the championship car livery
  • Compatible with IFMAR standard “square-shape” dimension battery packs
Specifications:
Length: 430mm
Width: 188mm
Height: 99mm
Wheelbase: 257mm
Tire Width/Diameter: 24/64mm (Front & Rear)
Gear Ratio: 6.56:1 (with kit 24T pinion)


Needed to Complete:

  • 2-channel radio
  • Steering servo
  • ESC
  • 7.2-7.4 volt battery pack with compatible charger
  • Polycarbonate paint for polycarbonate parts
  • Plastic model paint for ABS plastic parts
  • 540 brushed motor
