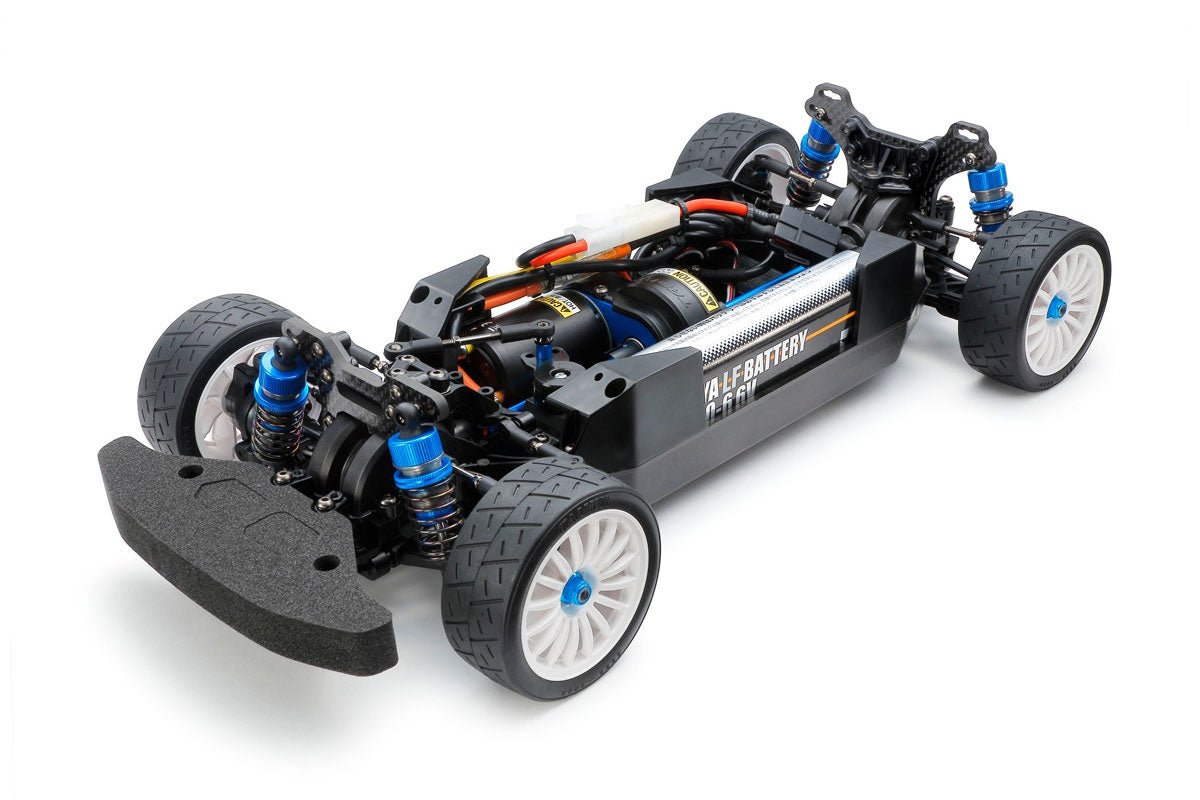

Tamiya RC XV-02RS PRO 1/10 4WD Chassis Kit Touring Car
Regular price
$305.90
Couldn't load pickup availability
The XV-02 RS chassis is an on-road variant of the rally XV-02 platform.
Key Features
- 1/10 Scale R/C Chassis Assembly Kit
- Includes Full Ball Bearings
- FRP Fiberglass Reinforced Plastic Chassis
- Fully Independent Double Wishbone Suspension
- Aluminum-Cylinder Oil Dampers
In The Box
- (1) 1/10 RC XV-02RS PRO Chassis Kit
Needed to Complete
- (1) 2+ Channel Radio System
- (1) Electronic Speed Control
- (1) 540-Size Motor
- (1) Standard Size Steering Servo
- (1) 7.2V - 7.4V Battery
- (1) Battery Charger
- (1) 190mm Wheelbase Body Set
Overview
The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.
Features
- 1/10 scale R/C chassis assembly kit.
- Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.

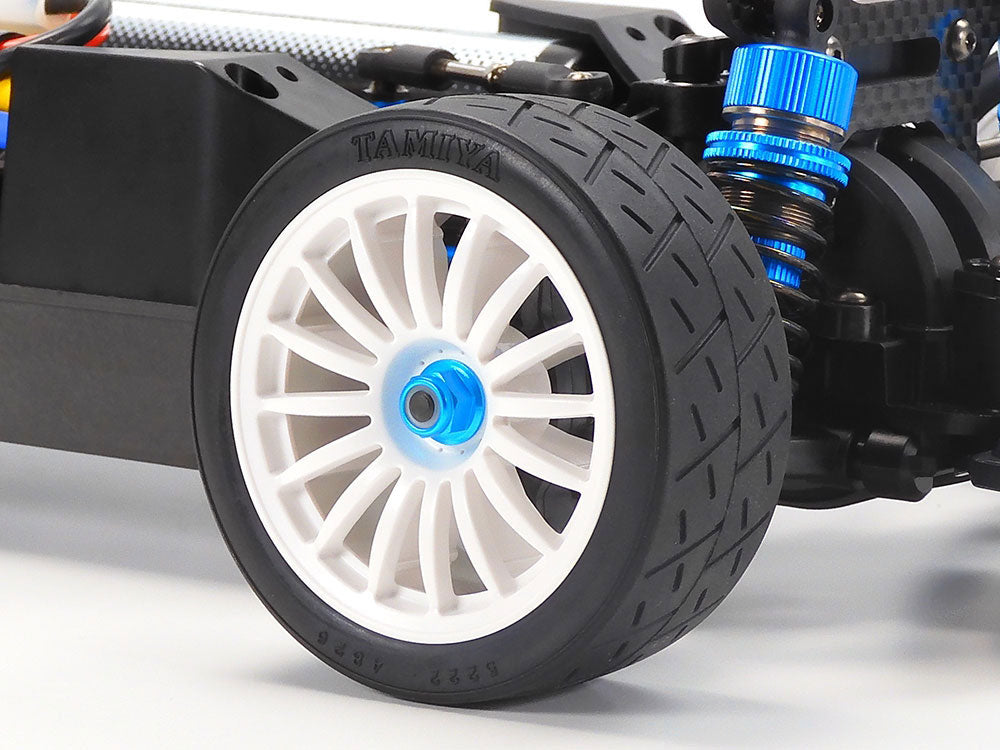

- 18-spoke wheels are paired with racing semi-slick tires.
- Equipped with front midship motor plus identical length front and rear long propeller shafts.
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- A longitudinal battery pack is positioned in the center-left for optimum balance.
- The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.
- Caster blocks feature an angle of six degrees.
- Includes front and rear universal drive shafts, and an aluminum servo mount.
- Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
