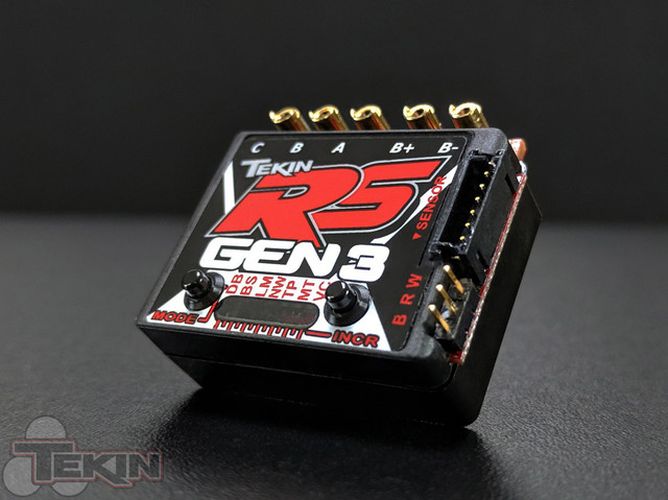

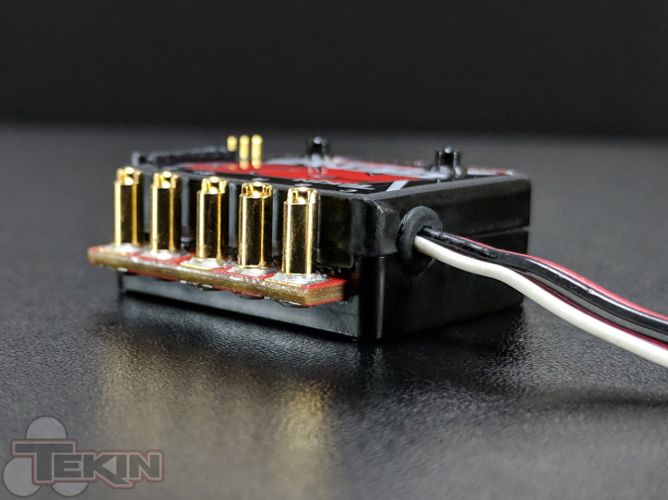

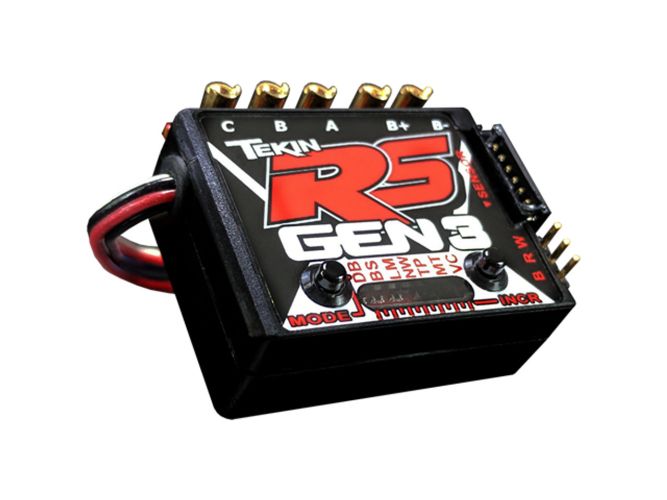

Tekin RS Gen3 BL Sensored/Sensorless D2 ESC 8.5 Turn Limit TT1156

The RS GEN3 brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!

Standard features include an updated HD solder post design for easy soldering, a High Voltage BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and firmware make the RS GEN3 our smoothest, best-driving RS ever.

FEATURES:
QuickTune One Touch Programming
HD Solder Post Design
Adjustable Torque Control *
3rd Channel Input for On-The-Fly Drag Brake Adjustments
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
* requires HotWire sold separately.

SPECS:
Controls: Forward/Brake/Reverse
Input Voltage: 2-3S LiPo / 4-9S NiMH-NiCD
**3S LiPo on 2300kV and down or 10.5T and up ONLY**
Motor Limit Brushless Mode 2S: 8.5 Turn 2-pole 36mm Can
Motor Limit Brushless Mode 3S: 10.5 Turn 2-pole 36mm Can
Motor Limit Brushed 2S: 12 Turn 36mm Can
Motor Limit Brushed 3S: 20 Turn 36mm Can
Max Current: 140amps per phase*
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
Weight: .83oz / 23.5g
*per manufacturer specs
