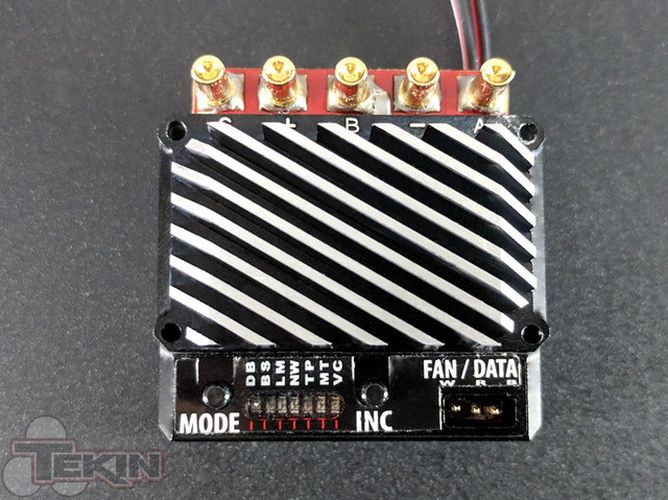

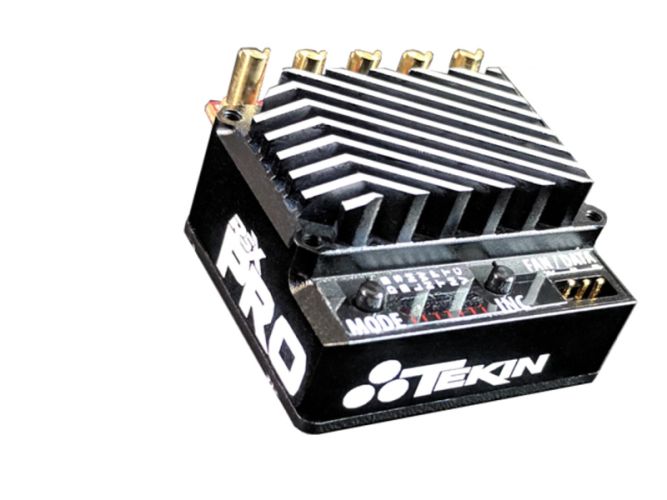

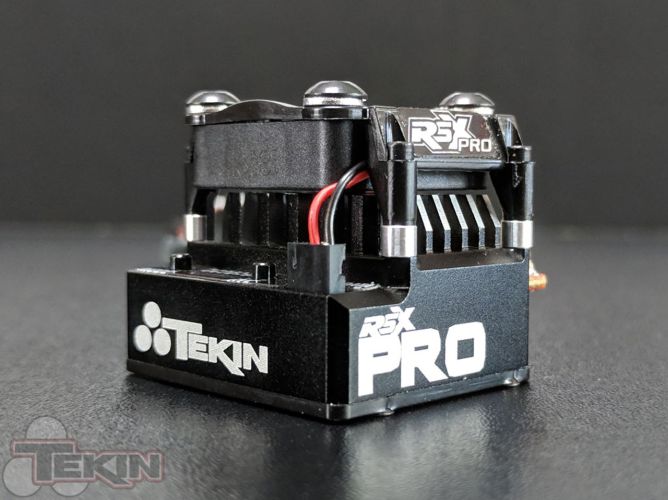

Tekin RSX Pro Mod Sensored/ Sensorless D2 ESC TT1159

The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win. Unlock the full potential of your RSX PRO with the Tekin HotWire.

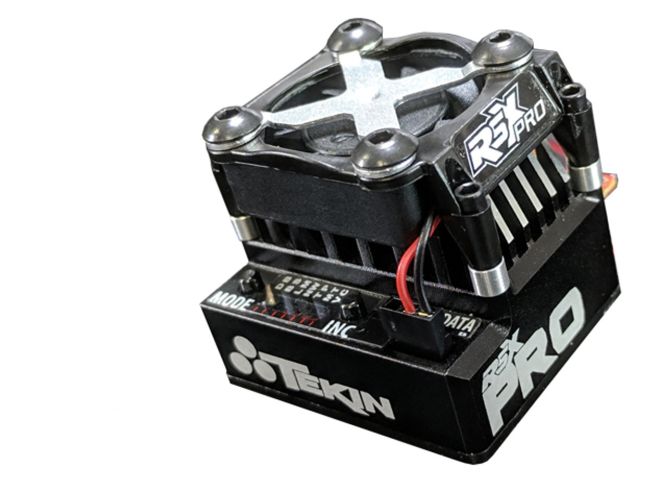

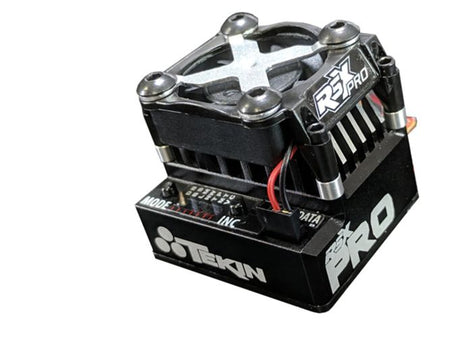

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.

FEATURES:
Billet 6061-T6 Aluminum Heat Sink Housing and Optional High RPM Cooling Fan
FET Package
HD Easy Solder Posts
QuickTune One Touch Programming
Adjustable Torque Control *
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
* requires HotWire sold separately

SPECS:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH
Motor Limit Brushless Mode 2S: 2.5 Turn 2-pole 36mm Can
Motor Limit Brushless Mode 3S: 8.5 Turn 2-pole 36mm Can / 3500kV max
Motor Limit Brushed 2S: 6 Turn, 36mm Can
Motor Limit Brushed 3S: 12 Turn, 36mm Can
Max Current: 210amps per phase*
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.21 x 1.43 x .82in / 31.2 x 37.2 x 21mm
Weight: 1.4oz / 40g
*per FET manufacturer specs
