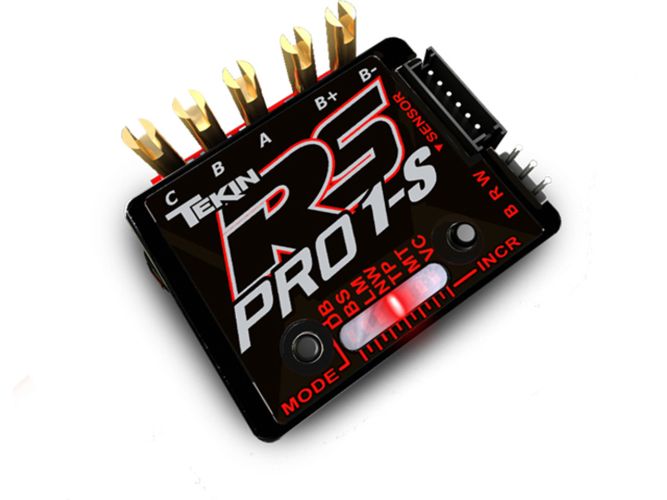

Tekin RS Pro 1S Black Edition BL Sensored/Sensorless ESC TT1161
Regular price
$229.99
Couldn't load pickup availability
This RS PRO Black Edition utilizes both hardware and software advances recently developed for Tekin's latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance. Capabilities such as Data Logging and HotWire 3.0 Bluetooth Connectivity allow you fine tune your system and gain an advantage over the competition.
The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.
For 1:10 scale 2WD/4WD Buggy and Stadium Truck and Modified Touring Car we recommend the RSX Modified ESC as these setups tend to run at higher temperatures. The billet housing and fan shroud on the RSX provide sufficient cooling.
FEATURES:
ULR: Ultra Low Resistance Design
Specifically Designed for Spec & Stock Racing
QuickTune One Touch Programming
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
Lightweight Chassis Design
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
* requires HotWire sold separately.
SPECS:
Controls: Forward/Brake/Reverse
Input Voltage RS Pro : 1-3S LiPo / 4-9S NiMH-NiCD
RS Pro 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode 2S: 36mm Can - 2-Pole
Motor Limit Brushless Mode 3S: 36mm Can - 2-Pole
Motor Limit Brushed 2S: 36mm Can - 540 & 550
Motor Limit Brushed 3S: 36mm Can - 540 & 550
Amperage: 480Amps per phase*
ON Resistance: .000096ohm*
BEC: 6.0 / 7.4V @ 5.5amps
Weight: 1.23oz / 35g
Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
*per manufacturer specs
