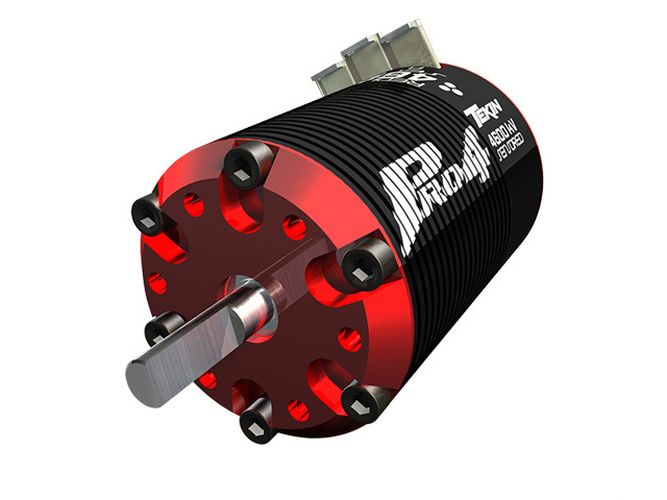

Tekin Pro4 BL 4600kV 540 5mm Shaft TT2500

Tekin's PRO4 Motors set a new standard for 4x4 Short Course performance. Utilizing the proven design of the T8 1:8th scale motor, the Tekin PRO4 produces the torque and smooth power you demand for a 4x4 Short Course Truck. Specifically designed with KV ranges to complement 2s, 3s and 4s LiPo power systems, no other 1:10th scale motor on the market can deliver the power needs your 4x4 Short Course requires. Pair the Tekin PRO4 with the RX8 GEN2 for the ultimate in 4x4 Short Course power systems.

FEATURES:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
4WD Short Course Specific
5mm Output Shaft
Neodymium Sintered Magnets
Rebuildable Design
High Purity Copper Windings Maximizes Efficiency
Precision Engineered for Maximum Energy Conversion
Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
High RPM ABEC5 Oversized Bearings

SPECS:
KV: 4600
Design: 4 Pole / 12 Slot
Input Voltage: 1-2S LiPo/LiHV / 4.2-8.7V
Weight: 179g / 6.3oz
Shaft Dimensions: 5mm (.196in) x 15.3mm
Motor Diameter: 35.85mm / 1.40in
Motor Length: 52.9mm / 2.10in
MAX RPM: 65,000
MAX Operating Temperature: 180F / 82C
Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: YES
